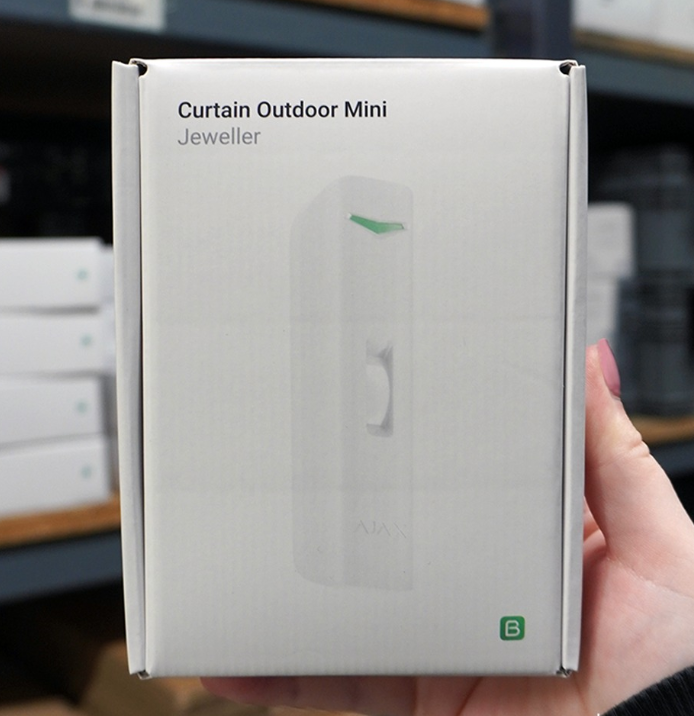

Ajax Curtain Outdoor Mini
Ajax Curtain Outdoor Mini
Free Shiping
Couldn't load pickup availability
Visit our eBay Store

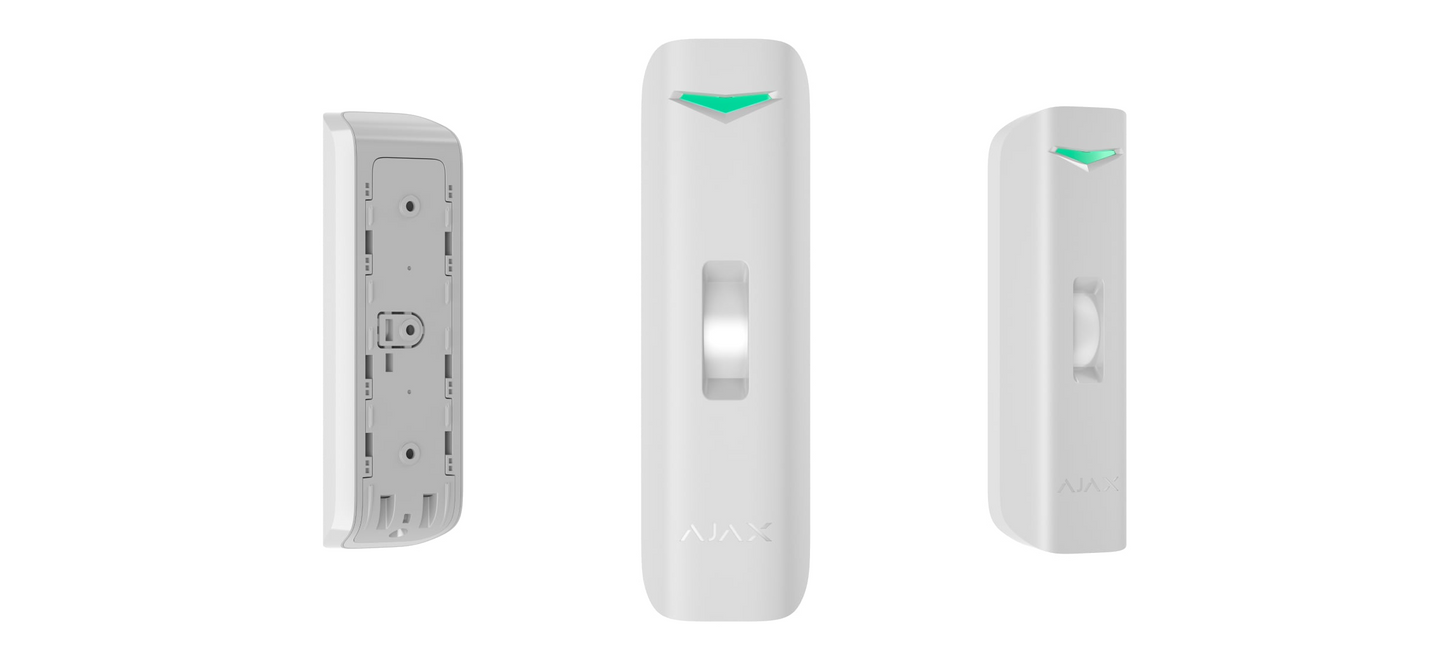

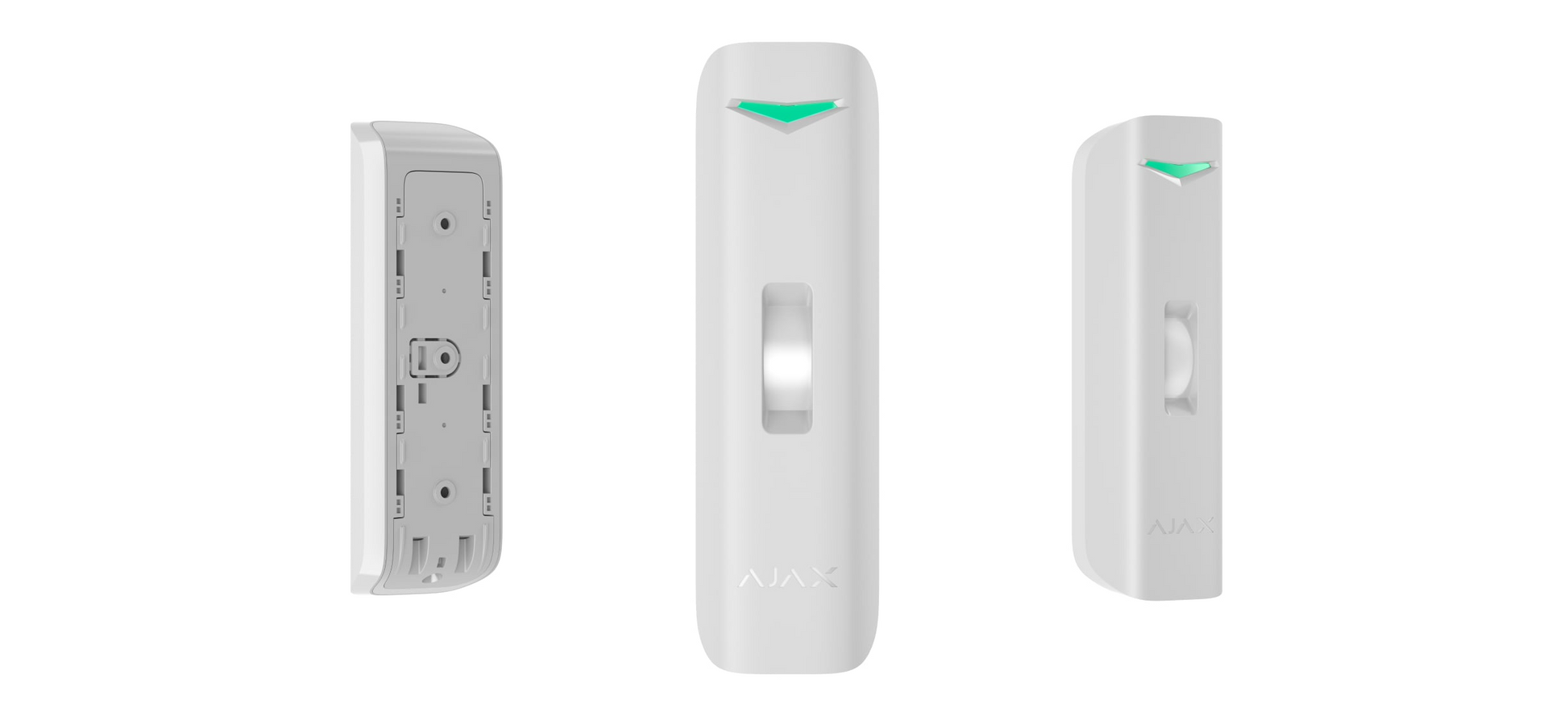

Wireless dual-technology curtain motion detector for outdoor and indoor use
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
868.0–868.6 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 1,700 m
Between the detector and a hub (or a range extender) in an open space.
Detection
Sensitive elements
1 × PIR sensor
1 × K-band microwave sensor
K-band microwave sensor to prevent false alarms caused by thermal interference.
Operation frequency: 24 GHz.
Motion detection distance
up to 5 m
When installed at a height of 1 m.
Motion detection angles
horizontal: 15°
vertical: 100°
Motion detection speed
0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax apps.
Pet immunity
height: up to 70 cm
weight: irrelevant

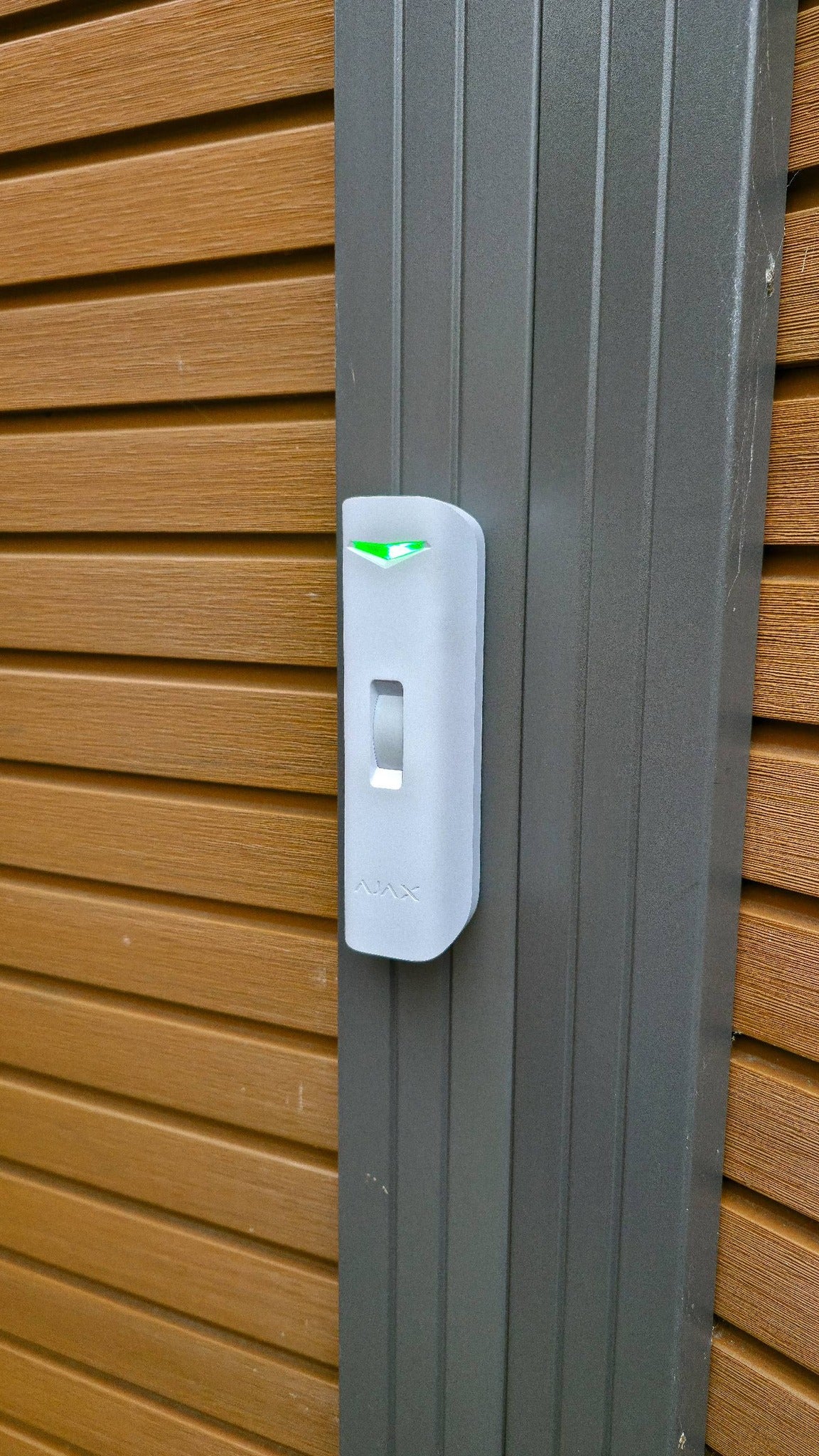

The detector should be installed at a height of 1 meter, and the slider on its enclosure should be set to the Pet position.
False alarm prevention
dual motion detection technology
SmartDetect
Software algorithm.
