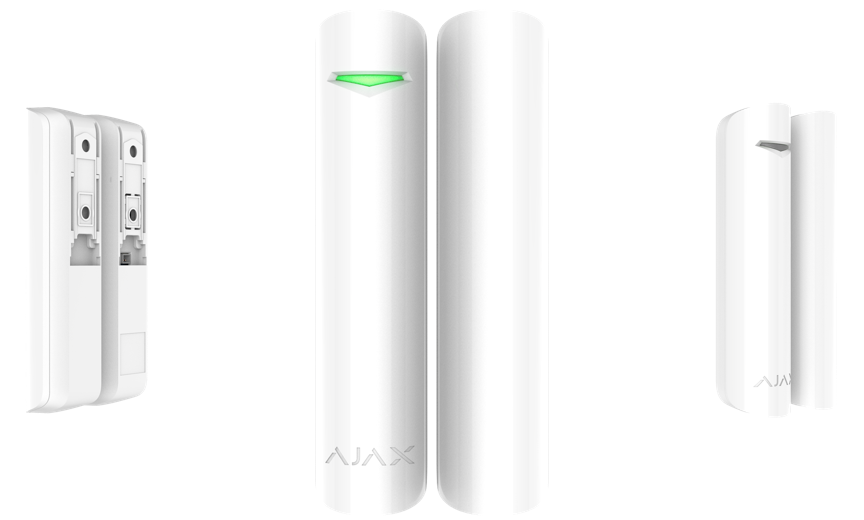

Ajax DoorProtect Wireless Opening Detector

Ajax DoorProtect Wireless Opening Detector

Free Shiping

Regular price $39.95 USD
Regular price $54.95 USD Sale price $39.95 USD
Sale Sold out
Shipping calculated at checkout.
Color

Ajax DoorProtect Wireless Opening Detector Indoors Protect Door or Window



Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.

Operates up to 7 years without battery replacement
External contact is available for connecting third-party detectors
Includes magnets of various sizes for installation on narrow frames and door frames

Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.


Features

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Tech specs

Classification

Point magnetic and contact radio channel security detector

Type of detector

Wireless

Installation method

Indoors

Compatibility

Operates with Hub, Hub Plus, ocBridge Plus

Sensing element

Reed switch

Alarm signal delivery time

0.15 s

Activation threshold

Small magnet — 1 cm
Big magnet — 2 cm

Power supply

Battery: CR123A battery
Power supply voltage: 3 V
Battery life — up to 7 years

Jeweller radio technology

Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s


Temperature sensor

Available

Operating temperature range

-10°С to +40°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing

+

Dimensions

Diameter: 20 mm
Height: 90 mm

Weight

29 g

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

DoorProtect opening detector
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User’s guide
