Ajax EN54 Fire Hub Wireless Control Indicating Equipment

Ajax EN54 Fire Hub Wireless Control Indicating Equipment

Free Shiping

$649.95 USD
$699.95 USD $649.95 USD
Sale Sold out
Shipping calculated at checkout.
Color
Complete set

Compliant doesn't mean complicated

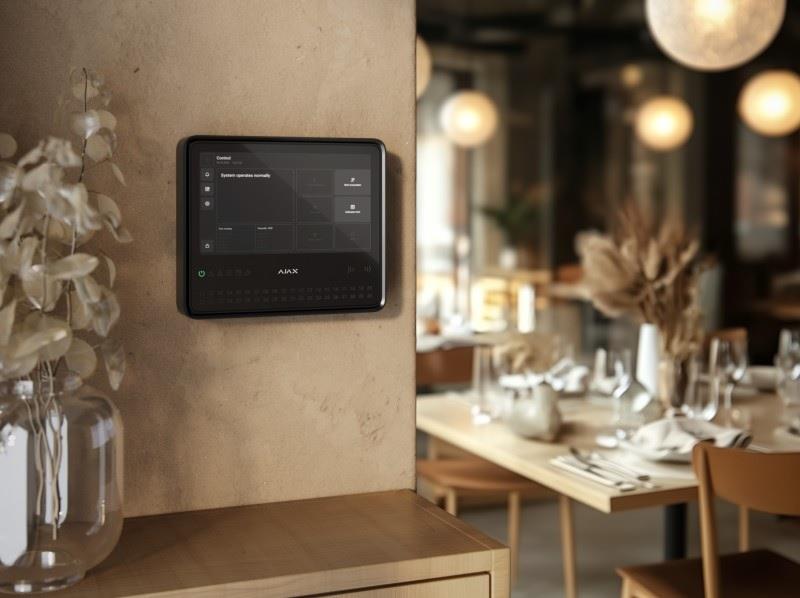

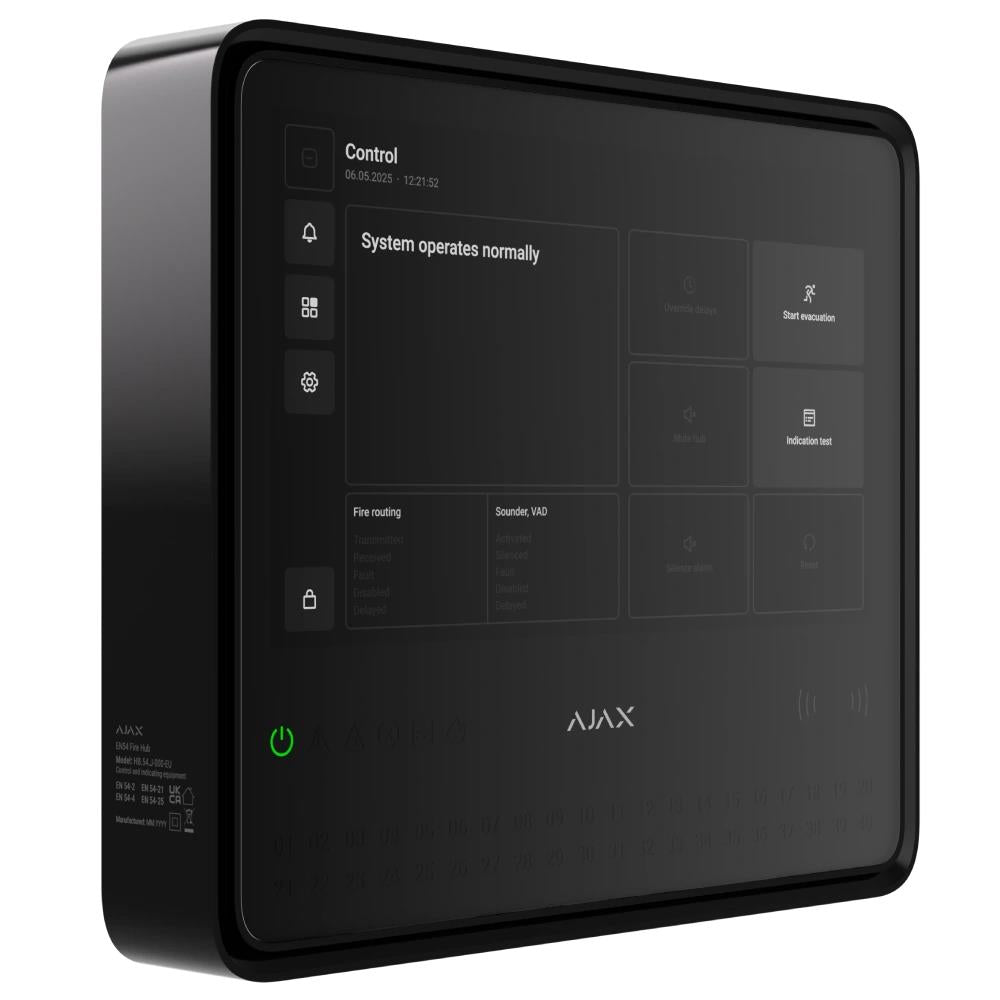

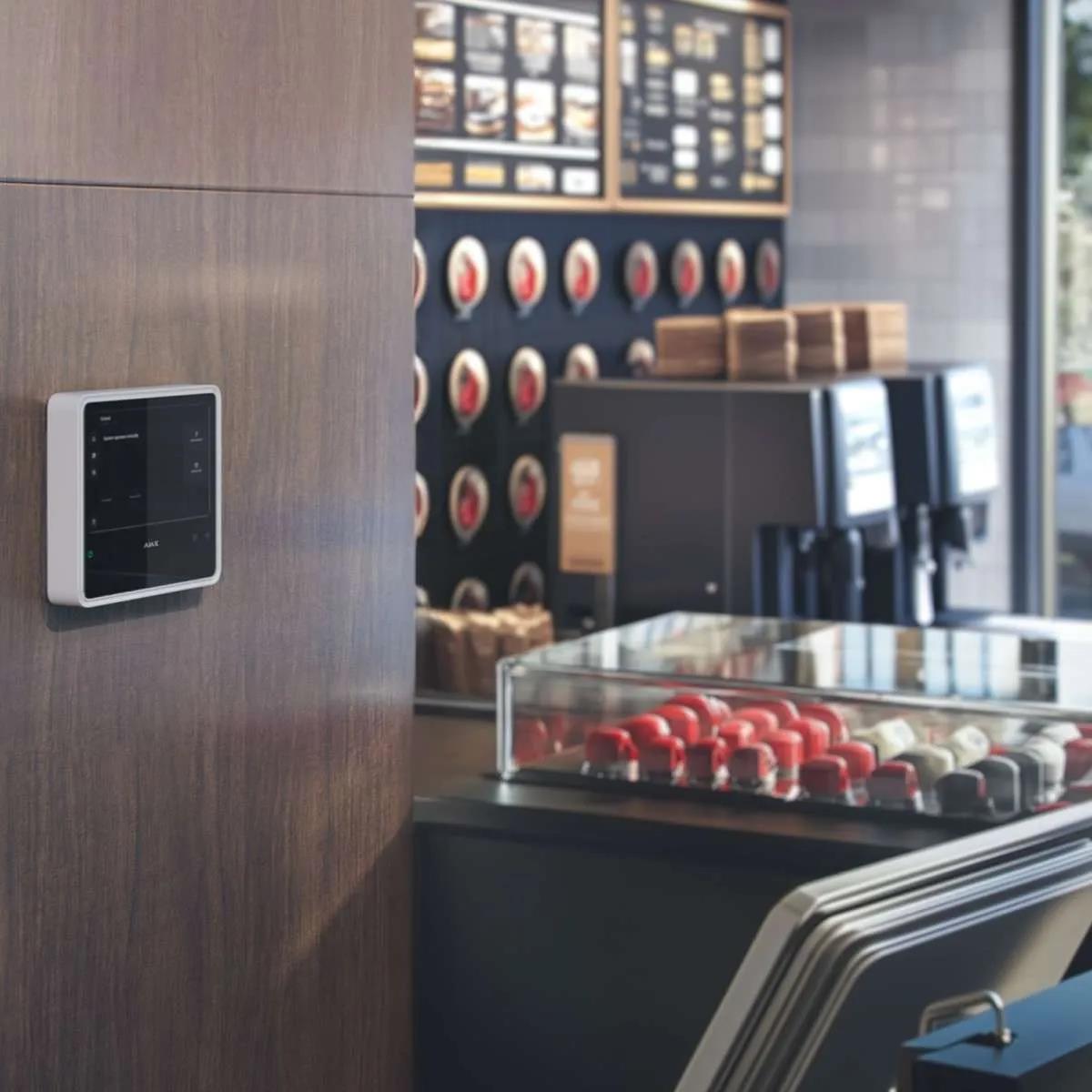

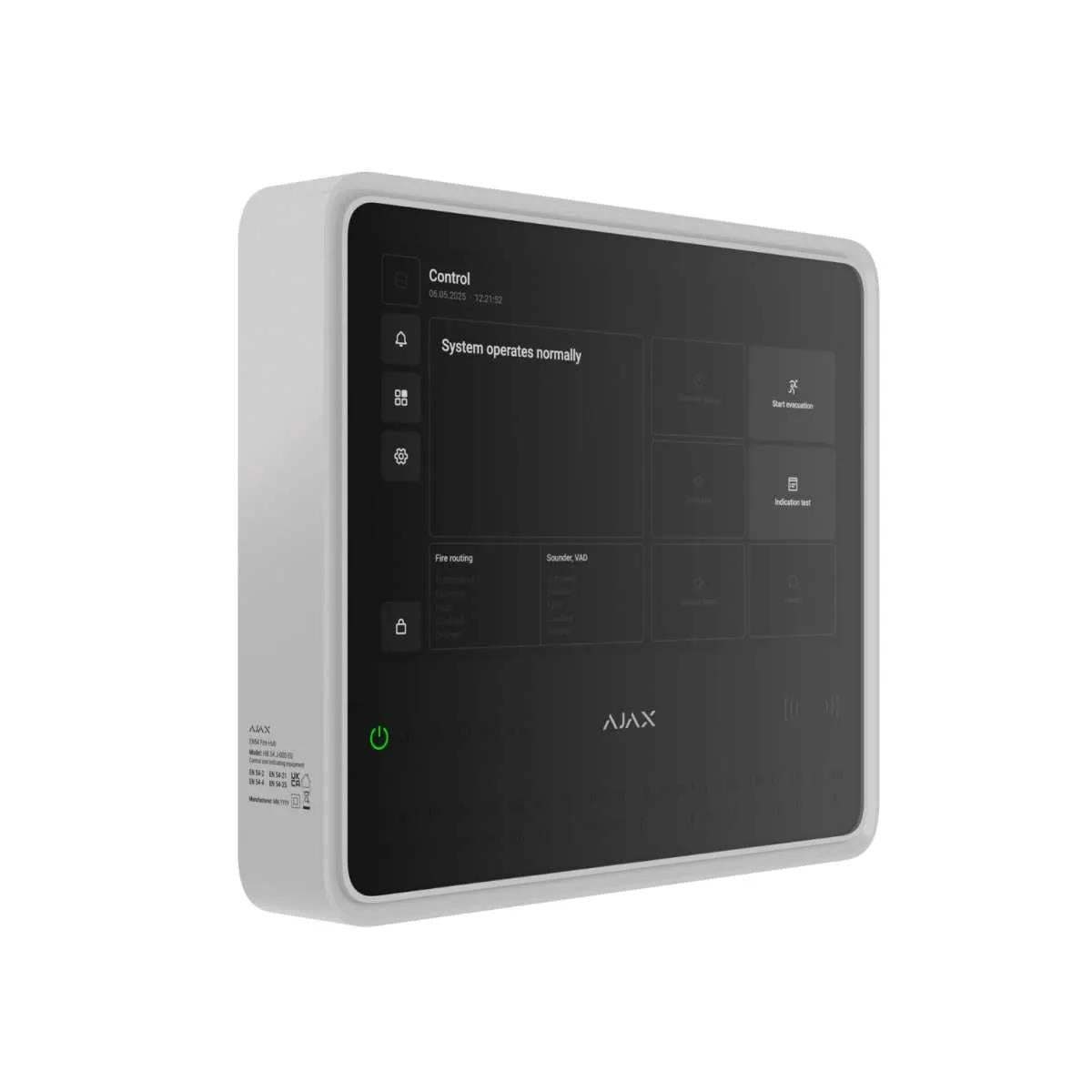

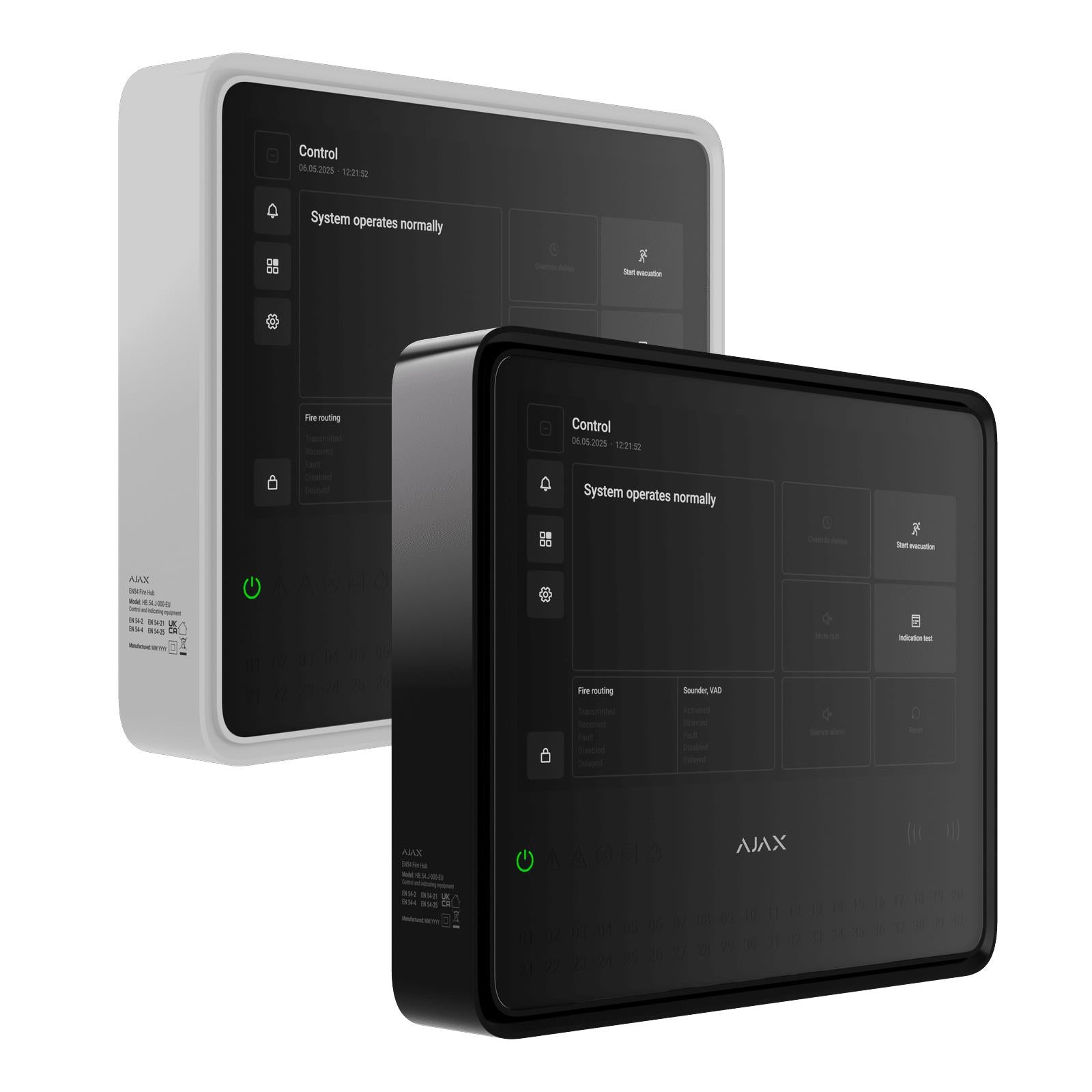

Introducing EN54 Fire Hub Jeweller, the Ajax's touchscreen CIE designed for all-around management of a fire safety system. It's easy to install, simple to use, and doesn't require much upkeep. Built-in communicators and a fully wireless device connection allow the system to be quickly deployed and connected to monitoring stations through Ajax apps. With its large touch screen and intuitive interface, the CIE provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation.

The CIE also supports EN 50131 (Grade 2) intrusion protection, video surveillance, and automation devices, making it a unified solution for commercial and municipal sites. Each alarm can be supported by visual verification, helping guide the facility staff on responding to the emergency.

GlandBox is a wiring accessory for neat lateral cable entry into the EN54 Fire Hub Jeweller enclosure. It ensures clean and professional installation when in-wall cable routing isn’t possible — for example, in historical buildings or temporary commercial setups. GlandBox provides secure cable fixation using red glands1 and integrates seamlessly with the CIE design, maintaining the sleek and tidy look.
cable-routing

Capacity


Devices

up to 200

Supports Ajax devices from the EN54 product line, wireless intrusion devices, and resettable buttons for manual fire alarm activation. Specifically, up to 10 intrusion sirens or keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweller devices.

Fire zones

up to 40

Alerts about fire in separate zones. Every zone may include multiple rooms.

Ajax NVRs

up to 36

Ajax cameras

up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs

Users

up to 200

  • Any number of admin users within the CIE limit.
  • PRO accounts for installers.
  • PRO accounts for installation and monitoring companies.
  • Access management for users.

Automation scenarios

up to 64

  • By alarm.
  • By schedule.
  • By arming/disarming.
  • By temperature, humidity, CO2 concentration.
  • By pressing Button.
  • By touching LightSwitch.

Rooms

up to 80

Event log

up to 5,000 events

Fire alarm system events. Can be viewed on the CIE display. Events are saved on the non-volatile onboard flash memory.

up to 500 events

Fire alarm, intrusion, and other system events. Can be viewed in the events feed in Ajax apps.

Communication


Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

868.0–868.6 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 1,800 m

Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

 Wings communication technology

Proprietary wireless communication technology to transmit photo verifications and update firmware.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Data packages reload in case of transmission errors.
  • Photo delivery check.

Frequency bands

868.0–868.6 MHz

Radio communication range

up to 1,800 m

Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Power supply


External

110–240 V, 50/60 Hz

Up to 0.48 A of mains power consumption.

Internal

7.4 V?, 5 Ah/10 Ah

On Rechargeable Li-ion battery not included in the complete set: EN54 Internal Battery (24h) or EN54 Internal Battery (72h).

Complete set


SmartBracket mounting panel

Installation kit

Ethernet cable

Special tool (key)

Quick start guide
