Wireless addressable module with two inputs and two outputs for a fire alarm system
Pushing the boundaries of fire safety

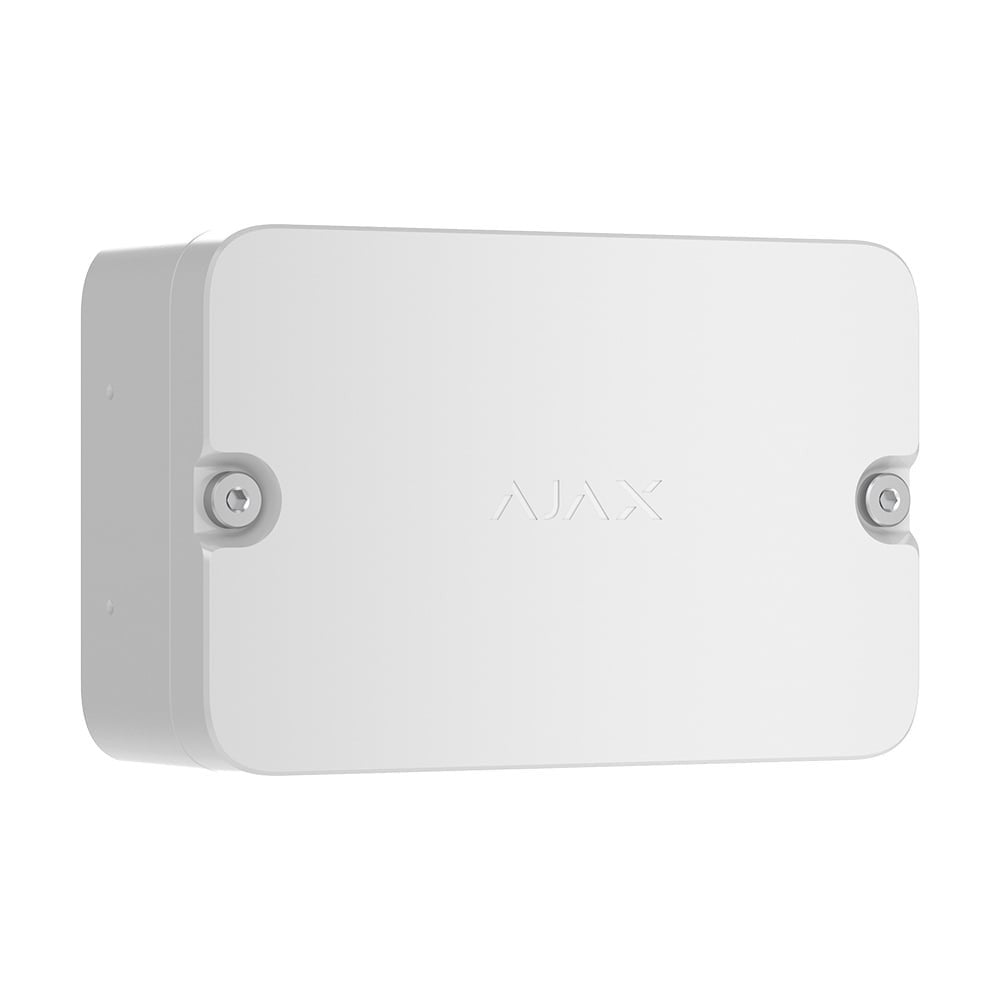

EN54 I/O Module (2X2) Jeweller blurs the limits for use cases and compatibility in EN 54-certified Ajax setups. It automates responses to emergencies by integrating gates, door locks, lighting, or alert systems through the module outputs. Its inputs allow complementing the setup with beam smoke detectors, elevator control panels, HVAC systems, or other wired third-party devices to address any fire or life safety scenario. Designed to deliver an Ajax-level experience, the module offers out-of-the-box communication with the CIE, intuitive configuration via Ajax apps, and zero-hassle maintenance.
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
868.0 – 868.6 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 1,700 m
Between the device and a control and indicating equipment (CIE) or a range extender in an open space.
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Inputs
Number of input lines for third-party devices
2
Input terminals
- Input 1, Input 2 — inputs for connecting third-party wired devices.
- Shield — common input for connecting shields of the cables that connect third-party wired devices.
Type of connection
NO, NC, EOL, 2EOL, 3EOL
EOL resistance
0.47 k?, 1.2 k?, 2.7 k?, and 6.2 k? resistors
Four resistors for each input are included in the complete set.
Length of wired connection to third-party devices
up to 100 m
When 2?1.5 mm? (16 AWG) fire-resistant cable is used.
Cross-sectional area of the cable
0.4–2.5 mm? (21–13 AWG)
Outputs
Number of output lines for third-party devices
2
Output terminals
- Output 1, Output 2 — relay outputs for connecting third-party wired devices.
AC operating range
10—250 V~, 5 mA to 10 A (resistive load)
DC operating range
10—30 V?, 5 mA to 5 A (resistive load)
Cross-sectional area of the cable
0.4–2.5 mm? (21–13 AWG)
Key features
Event types
An Ajax app specifies event types for wired device inputs. The selected type determines the text of alarm notifications and events of the connected device, as well as event codes transmitted to the CMS. A PRO or a user with admin rights can configure the event type in an Ajax app.
Fail-safe mode
If the module is offline, discharged, or has hardware problems, it activates the connected devices automatically.
Complete set

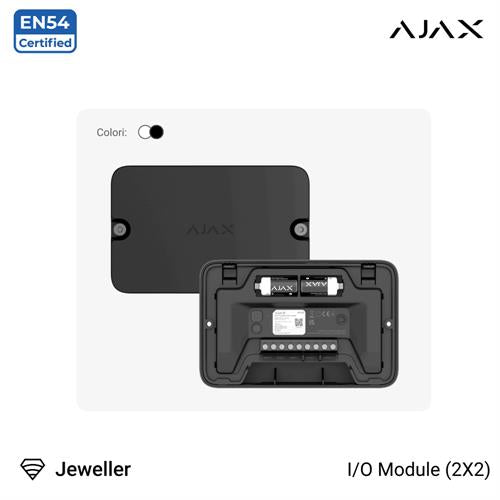

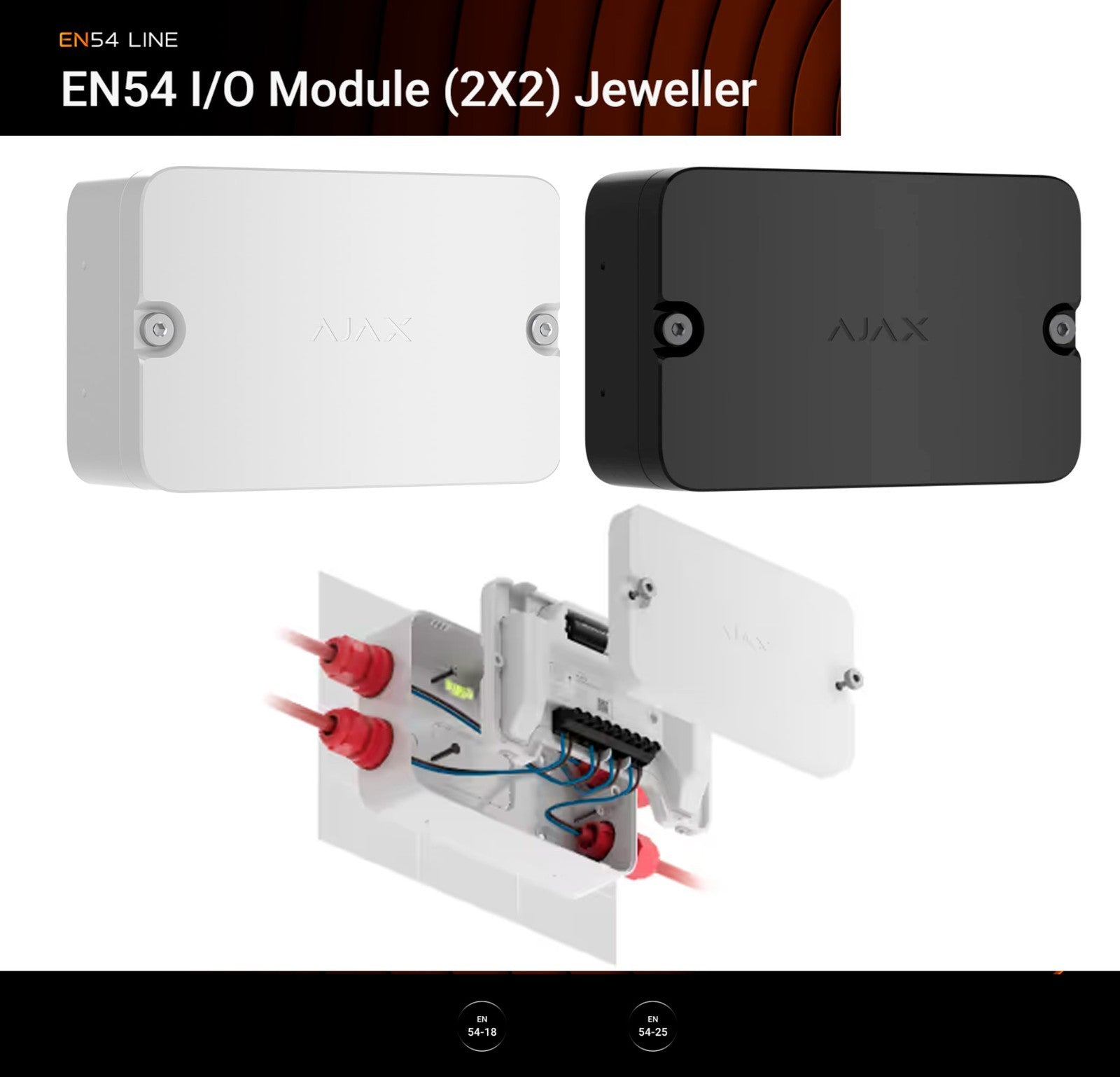

EN54 I/O Module (2X2) Jeweller
2 ? CR123A battery (pre-installed)
Installation kit
2 ? set of 4 EOL resistors
Quick start guide
