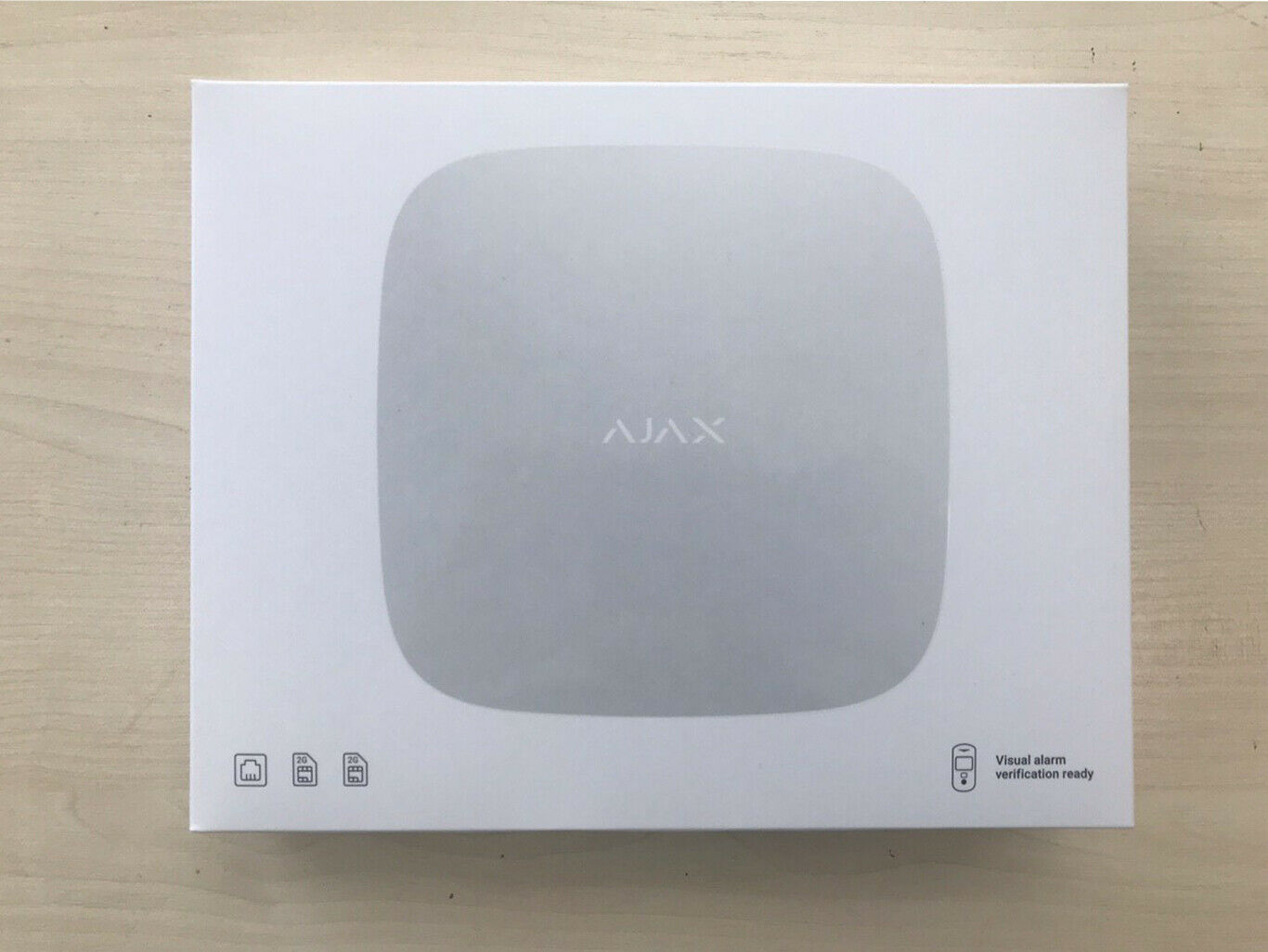

Ajax Hub 2 2G Alarm System Center

Ajax Hub 2-intelligent Central-controls the operation of all security sensors and devices Ajax protection system. Communication between the hub and the devices is carried out by wireless two-way radio Protocol Jeweller at a distance of up to 2000 m of open space. Up to 100 sensors can be connected to Hub 2 simultaneously.

The entire Ajax system is managed through the application from anywhere in the world (smartphones running iOS or Android operating system, as well as Windows or macOS computers). For reliable and stable communication with the "outside world" through the Ajax Cloud service - sending alarms, receiving control commands, etc. - Ajax Hub 2 uses three independent channels: wired Internet (Ethernet) and two 2G SIM cards. Optimized data transfer and compression protocols ensure instant signal delivery even at low or unstable Internet connection speeds.

Ajax notifies you about alarms and other events via push notifications, SMS and calls.

A key feature of Hub 2 is the compatibility with the motion photography sensor-Ajax MotionCam.

How photography works

The sensor detects motion, takes a series of photos, transmits them with alarm data to Ajax Hub 2. A series of photos of what is happening can be immediately viewed in the security management application.

This logic of the system allows to avoid false calls of the security team of rapid response and in real time, to see and evaluate what is happening at the facility from photographs.

For transmission sequence is used radioprotector high-speed data transmission, Ajax Wings. The Hub 2 dedicated antenna ensures additional reliability of data delivery even at low signal levels. Unlike surveillance cameras, photo fixation with Ajax MotionCam, allows you to see the situation even at the speed of the Internet connection 0.5 kbps

Hub 2 is ready to go out of the box. Configurable via mobile app and sensors are connected in one click.

Mounted in a few minutes by mounting the SmartBracket.

Maximum capacity

Three independent wired Ethernet links and two 2G SIM cards

Reports alarms via push notifications, SMS or phone call

Compatible with sensor images MotionCam that conveys fotoportrety alarms even on 2G networks

Ajax Hub 2 is able to manage 100 devices Ajax at the same time

Supports seamless integration with DAHUA, Hikvision, Safire IP cameras and DVRs, as well as other manufacturers ' cameras with RTSP Protocol. Up to 25 video surveillance devices can be connected to Hub 2

Two highly reliable and high-speed radioprotecao: Jeweller for communication and control devices, Ajax, Wings - for wireless transmission of a series of photos and check the delivery fotoportrety

Protection against failures and sabotage

The case is tamper-proof

Up to 16 hours of standby power with Ethernet off

The response of the sensors is checked by pings with a period of 12 seconds

Two GSM modules provide backup communication channels in the event of a wired Internet outage

Usability

Arm/disarm the protection system Ajax keychain SpaceControl or touchscreen KeyPad. Configure and fully manage all Ajax devices with free apps for iOS/ Android, or Windows | macOS

For the full operation of the alarm, including the guaranteed delivery of a series of photos from The motioncam sensor, the Internet is enough even with the speed of GPRS 0.5 kbit / sec.

Two-way communication with devices enables continuous testing and easy setup

Firmware and software are updated automatically and for free

Geofence technology will remind you to turn on the alarm when leaving the room and turn off after returning
