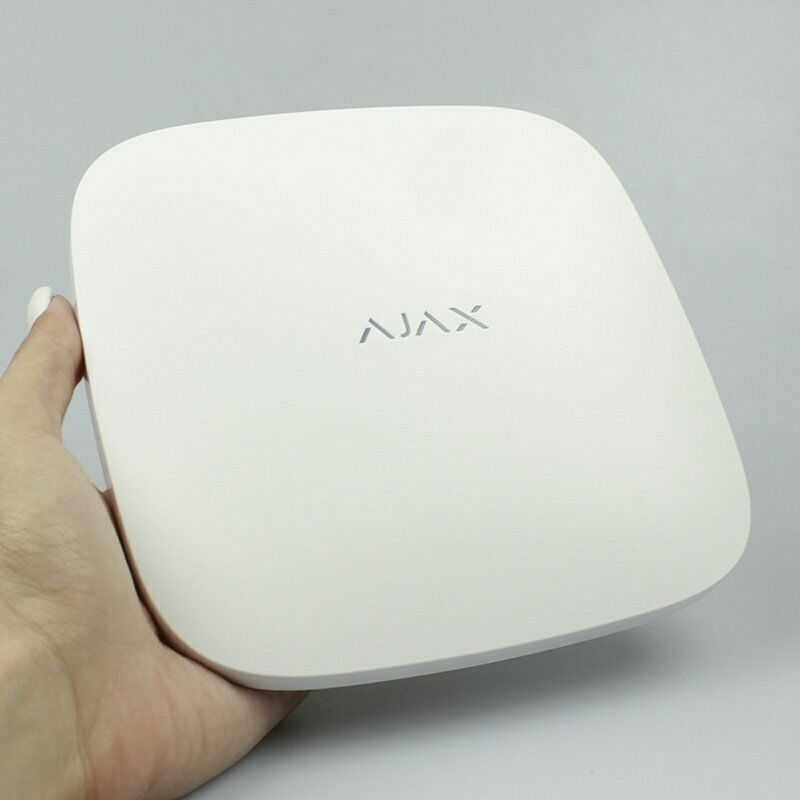

AJAX Hub 2 Plus Wireless Intelligent Security System Control Panel
AJAX Hub 2 Plus Wireless Intelligent Security System Control Panel
Free Shiping
Regular price
$294.95 USD
Regular price
$329.95 USD
Sale price
$294.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Wireless Intelligent Security System Control Panel
Instant communication with users and alarm monitoring company
Communication with the outer world is critical for alarm control panels as its reliability guarantees prompt delivery of alarm signals. The new Ajax control panel makes external communication stability absolute.
Hub 2 Plus has 4 communication channels and supports LTE. Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.
Classification |
Security system control panel with four in-built channels for external communication and support of detectors with photo cameras
|
Installation |
Indoors
|
Connected devices |
200
|
Video surveillance support |
100 cameras and DVRs
|
Maximum amount of users |
200
|
Maximum amount of rooms |
50
|
Maximum amount of security groups |
25
|
Connected ReX |
5
|
Scenarios |
64
|
MotionCam detectors support |
+
|
Apps |
iOS 9.1 and later
Android 4.4 and later |
Communication channels |
2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20) Wi-Fi (802.11 b/g/n) Ethernet |
Alarm signals |
Delivery time: 0.15 sec Notification types: SMS, call, push-notification
|
Switching between 2G, 3G, LTE |
Instant
|
Switching between the SIM-cards |
4 minutes
|
CMS connectivity |
CMS connectivity: Contact ID, SIA
Photo verification integrated in Manitou, ABsistemDC(NG) and SBN |
Operating system |
OS Malevich
|
Power supply |
110−240 V from mains
Built-in back-up battery: Li-Ion 3 А·h Up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled Energy consumption from mains — 10 W |
Jeweller radio technology |
Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices Operating frequencies — 868,0−868,6 MHz
Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm
Detector polling period — 12−300 s Frequency hopping
|
Wings radio technology |
Transmission of visual confirmations
Delivery verification of packages |
Operating temperature range |
From −10°С to +40°С
|
Anti-sabotage |
Forgery prevention
Notifications about jamming Tamper to detect back lid opening and unmounting from SmartBracket
|
Remote set up and testing |
+
|
Size |
163×163×36 mm
|
Weight |
351 g
|
Warranty |
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
|
Complete set |
Ajax Hub 2 Plus control panel
SmartBracket mounting panel Power cable
Ethernet cable Installation kit
User’s guide
|
