AJAX

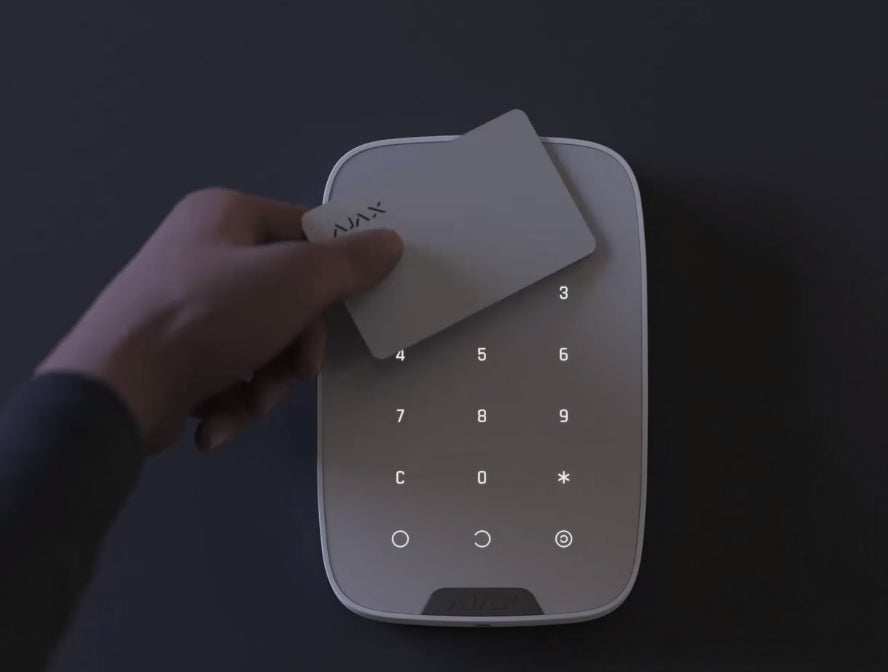

Ajax KeyPad Plus Wireless Touch Keyboard

Ajax KeyPad Plus Wireless Touch Keyboard

Free Shiping

Regular price $109.95 USD
Regular price $149.95 USD Sale price $109.95 USD
Sale Sold out
Shipping calculated at checkout.
Color

Wireless touch keypad for controlling the Ajax security system Ajax security system with secure proximity cards and key fobs.

  • Grade 2 EN 50131

  • PD 6662:2017

  • DESFire

Contactless security management.
With KeyPad Plus it is not necessary to create Ajax accounts for users. All that is required is the provision of a Simply provide a copy-protected swipe card or key fob and the user can manage security for security for an entire facility or individual groups.

Remote access control.
All KeyPad Plus events are logged in the Ajax app. If an access device is lost, the owner can Immediately lock it in the app, and the user can use their own personalised password at the same time. password. All permissions can be changed remotely and in real time.

  • Up to 200 users.

  • Up to 200 cards and tags.

  • Personalised passwords.

  • Simplified group security management.

Secure identification users.
For fast, yet secure user identification user identification, the KeyPad Plus uses DESFire technology. It is a best-in-class proximity solution that allows users to The user can be identified by card or key fob.

DESFire is based on the international standard ISO 14443 standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in the transportation systems of European capitals and access systems at NASA.

Outstanding battery life.
The new KeyPad Plus firmware allows you to get the most out of the batteries. Even with daily Even with daily use of Proximity ID, the keypad will last up to 3.5 years without battery replacement. А Up to 4.5 years of battery life with key fob and card reader turned off. KeyPad Plus alerts the security company and users when batteries need to be replaced.

Comprehensive protection against sabotage.
KeyPad Plus is password-protected. The keypad locks after several attempts to guess the password or to use a third-party card or key fob. Users and the security company are notified of such attempts. Users and security companies are notified of such attempts, loss of communication or removal of the keypad from the mount.



Tech specs

Keypad type
Capacitive touch keypad
Installation
Indoor only
Compatibility
Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Personal passcodes
Yes
Passcode guessing protection
Yes
Duress code
Yes
Contactless access
DESFire® EV1, EV2
ISO14443-А (13,56MHz)
Power supply
Batteries: 4 lithium AA (FR6)
Voltage 1.5V
Battery life: up to 4.5 years
Temperature sensor
Available
Jeweller radio technology
Communication range with central unit — up to 1,700 m
Two-way communication between devices
Operating frequencies — 868.0–868.6 MHz5
Self-adjusting RF output power — up to 20 MW
Block encryption with a dynamic key
Ping period — 12–300 s


Anti-sabotage
Authentification
Jamming detection
Tamper notifications
Operating temperature range
From –10°C to +40°C
Operating humidity
Up to 75%
Dimensions
165 × 113 × 20 mm
Weight
267 g
Certification
EN 50131, complies with the requirements of the technical regulations for radio equipment
Warranty
24 months


Complete set
KeyPad Plus
SmartBracket mounting panel
4 × АА batteries (pre-installed)
Installation kit
User guide
1 Cards and key fobs are sold separately
2 Depending on the hub model: Hub 2 — up to 50 users, Hub Plus — up to 99, Hub 2 Plus — up to 200.
3 With hub–detector polling period of 12 seconds
