Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the region of sale.
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 1,700 m
Between button and hub (or range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Resettable frangible element
activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes
fire alarm
scenario trigger
With appropriate settings, it activates an alarm or controls
Ajax automation devices.
LED status indication
fire alarm
malfunctions
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.
Interconnected fire detectors alarms
by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens.
Critical alerts
The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.
Protection against accidental presses

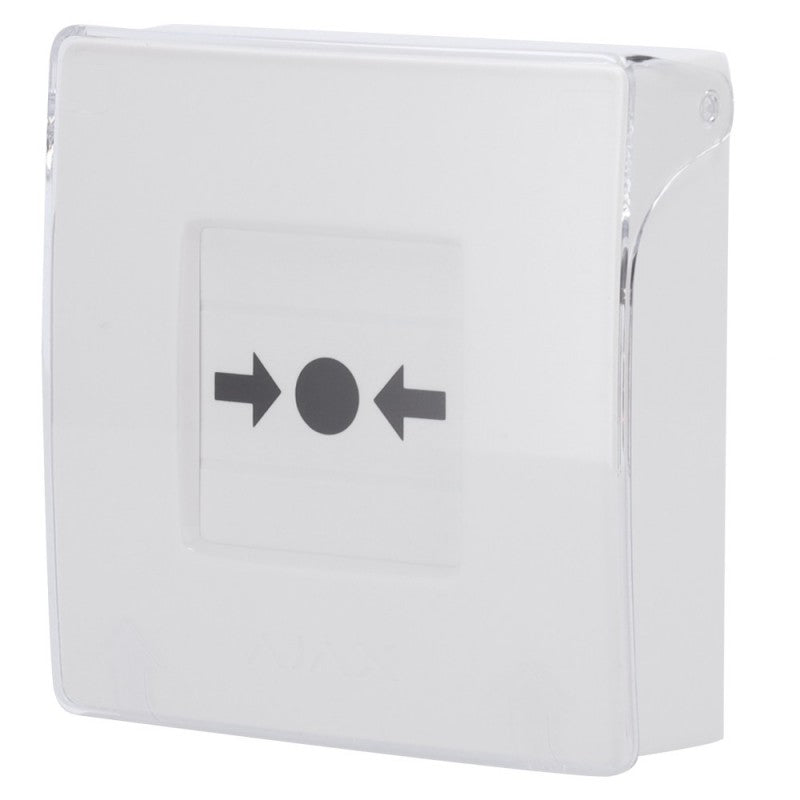

Lift the transparent lid to access the frangible element. The lid protects against false button presses.
CMS alarm transferring
can be disabled for the Blue version only
ManualCallPoint (Red) Jeweller and ManualCallPoint (Blue) Jeweller have the same functionality.
However, unlike the Red model, the Blue model allows disabling the CMS alarm transferring.
Complete set
ManualCallPoint Jeweller
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
