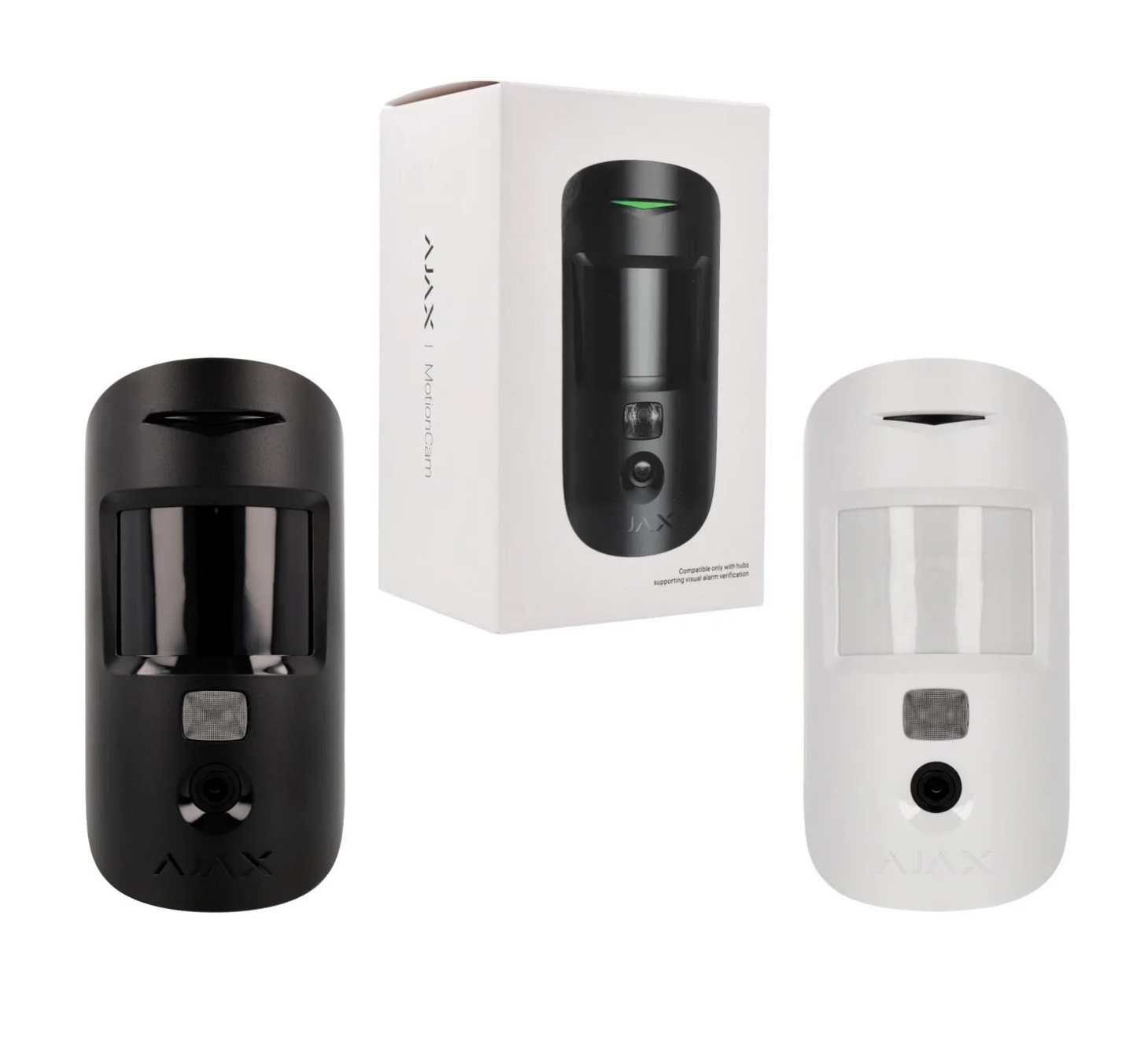

Ajax MotionCam Wireless PIR Motion Detector

Ajax MotionCam Wireless PIR Motion Detector

Free Shiping

Regular price $114.95 USD
Regular price $149.95 USD Sale price $114.95 USD
Sale Sold out
Shipping calculated at checkout.
Color

Ajax MotionCam Wireless PIR Motion Detector with Photo Registration camera Alarm



AJAX MotionCam

Motion detector with a photo camera to verify alarms

  • Sends an animated series of images if triggered
  • Sees in the dark
  • Operates up to 3 years on the pre-installed batteries
  • Operates on a distance of up to 1700 m from the hub
Note: MotionCam detectors require Hub 2 for operation

Reveals what’s happening

With the MotionCam, you see what triggered an alarm. The detector spots people’s motion within a 12-meter range and takes a series of photos.
In contrast with the video surveillance systems, MotionCam wireless detectors take minutes to install, are independent of Wi-Fi, and continue to operate smoothly even during a blackout.

Tech specs

Classification

Electro-optical combined radio channel security detector with a photo camera

Detector type

Wireless

Installation

Indoors

Motion detection distance

Up to 12 m

Pet immunity

Weight: up to 20 kg
Height: up to 50 cm

Compatibility

Only with Hub 2

Sensing element

PIR sensor

Detection angles

Horizontal — 88.5°
Vertical — 80°

Camera view angle

90°

Alarm signal delivery time

0.15 sec

Photo verification

Time to deliver a photograph with default settings: up to 9 sec

Photo quality: up to 640 × 480

Pictures in a series: 1-5 pcs


IR backlight for night mode pictures

Available

Sensitivity

Adjustable, 3 levels

Recommended installation height

2.4 m

Power supply

Batteries: CR123A (x2)

Power supply voltage: 3 V

Battery life: up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)

Jeweller radio technology

Communication range with detectors: up to 1,700 m in the line of sight
Two-way communication between devices
Operating frequencies: 868.0-868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Detector polling period: 12−300 s
Frequency hopping


Wings radio technology

Transmission of visual alarm verifications

Temperature sensor

Available

Operating temperature range

From 0°С to +40°С

Operating humidity

Up to 75%

Anti-sabotage

Fraud protection
Jamming notification
Tamper-resistant

CMS compatibility

Motion alarms are transmitted to CMSs that support SIA and Contact ID protocols

Visual alarm verifications are transmitted to the Manitou CMS and Ajax PRO Desktop app

Remote configuration and testing

+

Protection class

IP50

Dimensions

135 × 70 × 60 mm

Weight

167 g

Warranty

Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.


Complete Set

MotionCam motion detector
SmartBracket mounting panel
x2 CR123A batteries (pre-installed)
Installation kit
