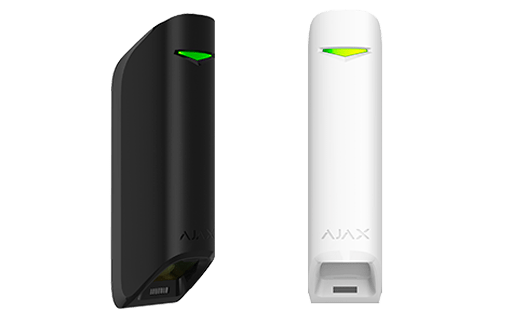

Ajax MotionProtect Curtain Indoor Motion Detector

Ajax MotionProtect Curtain Indoor Motion Detector

Free Shiping

Regular price $69.95 USD
Regular price $99.95 USD Sale price $69.95 USD
Sale Sold out
Shipping calculated at checkout.
Color

Ajax MotionProtect Curtain Narrow Beam Indoor Motion Detector Protects Windows



MotionProtect Curtain
Narrow beam indoor motion detector. Protects windows, doors, and valuables

The maximum capacity

  • Detects movement at a distance of up to 15 meters
  • Viewing angles: horizontal-6°, vertical-90°
  • Equipped with two PIR sensors to eliminate false dreams
  • It is used indoors

Protection against failures and sabotage

  • Ajax is connected to The security system using the jeweller secure Protocol
  • Authentication to protect against forgery
  • Tamper switch protects the enclosure from opening
  • Detection and prevention of jamming. Communication encryption

Usability

  • Keeps two-way communication with hub for testing and setup
  • Range of communication with the Central up to 1700 meters in the absence of obstacles
  • Automatic sensor calibration
  • Works up to 3 years from complete batteries

Easy installation

  • Connects to Ajax Hub, Ajax Hub Plus and Ajax Hub 2 in a few clicks: scan the QR code, add the sensor to the room and you can start mounting
  • Two options for installing MotionProtect Curtain-directly on the surface using The smartbracket mount, or on the complete bracket
  • Works at temperatures from -10° to +40°C
  • Enclosure protection IP54
  • Communication quality and detection area are tested remotely

Tech specs

Classification

Radio-interlinked photoelectric security detector

Type of detector

Wireless

Motion detection distance

From 6 to 15 meters (depending on the device settings)

Installation method

Indoors only

Compatibility

Operates only with Hub, Hub Plus, Hub 2 and ReX

Sensing element

Two PIR sensors

Alarm signal delivery time

0.15 seconds

Detection angles

Horizontally—6°
Vertically—90°

Sensitivity

Adjustable, 3 levels

Recommended installation height

2.4 meters

Power supply

Battery: CR123A
Power supply voltage: 3 V
Battery life: up to 3 years

Jeweller radio technology

Communication range with detectors — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping


Temperature sensor

Available

Operating temperature range

From −10°С to +40°С

Operating humidity

Up to 95%

Anti-sabotage

Fraud protection
Jamming notification
Tamper-resistant

Remote configuration and testing

+

Protection class

IP54

Dimensions

134х44х34 mm

Weight

118 g

Certification

DSTU EN 50131

Warranty

Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.


Complete Set

MotionProtect Curtain motion detector
SmartBracket mounting panel
CR123A batteries (pre-installed)
Bracket
Installation kit
User’s guide
