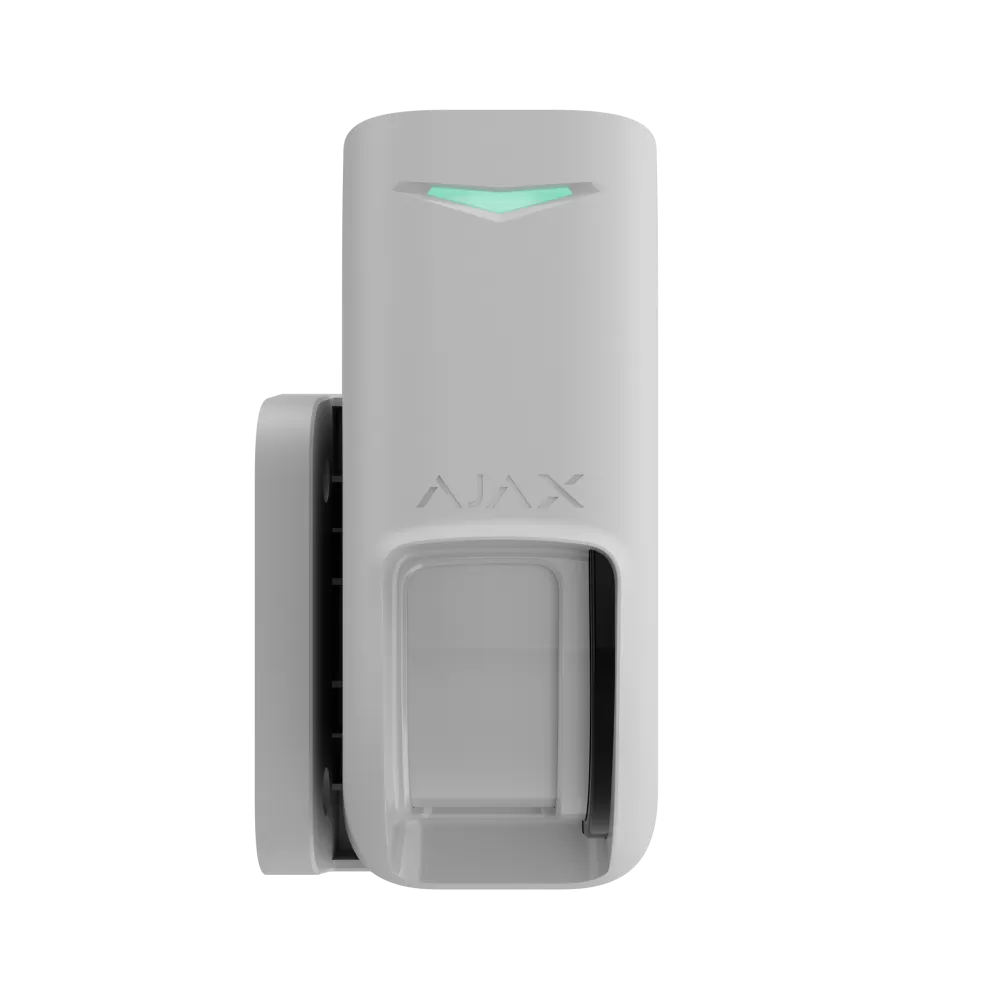

Ajax MotionProtect Curtain Outdoor

фWireless dual technology curtain motion detector for outdoor and indoor use

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 1,700 m

Between the detector and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

 Wings communication technology

Proprietary wireless communication technology for uploading firmware updates.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Data packages reload in case of transmission errors.

Radio communication range

up to 1,700 m

Between the detector and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Anti-masking system

detects attempts to block the detector view

Accelerometer

alarm when the detector is moved

Must be activated when the detector is installed on third-party brackets.

Holding screw

To secure the detector on SmartBracket or hood.

Communication loss detection

within 36 s

Detection time depends on the Jeweller settings.
