Ajax MotionProtect Outdoor

Name: Ajax MotionProtect Outdoor
Brand: AJAX
SKU: 000010641
Price: 144.95 USD
Availability: InStock

Ajax MotionProtect Outdoor

Free Shiping

$144.95 USD

~~$179.95 USD~~ $144.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

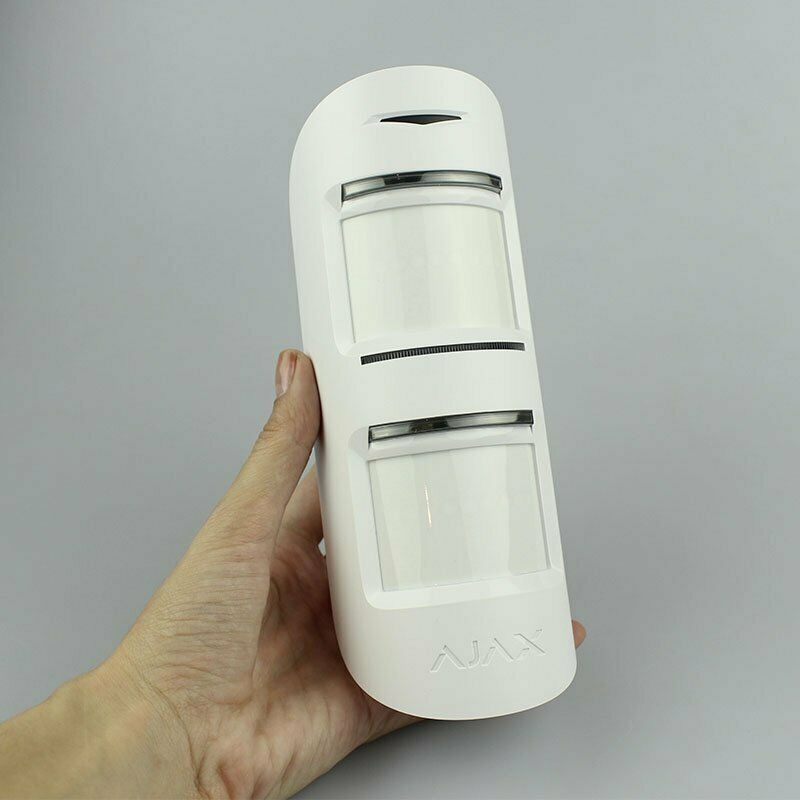

Ajax MotionProtect Outdoor Wireless Motion Detector with intelligent protection

Wireless outdoor motion detector with intelligent protection against false alarms. The device operates at low temperatures and is protected against dust and splashes.

Authentication to prevent forgery
Jamming detection and communication channels encryption
Tampering alarm

MotionProtect Outdoor ignores pets, birds, leaves of trees heated by the sun and other disturbances, but detects human presence when he sets foot on a protected area. The intelligent LISA algorithm eliminates false triggering.

The risks of sabotage are much higher outdoors than indoors. Therefore, in addition to tamper protection, MotionProtect Outdoor is equipped with a Grade 3 anti-masking system. There is no sense even to attempt to covertly block the view of the detector, hang the body with a cloth, glue or paint over the lenses.

The detector has a motion detection range adjustment: from 3 to 15 meters. MotionProtect Outdoor will be able to protect even small land plots.

Communication range	up to 1,200 meters
Bundled battery life	up to 5 years
External power	5–28 V
Body protection	IP54
On the market	Q4 2018

The MotionProtect Outdoor features the maximum possible protection for outdoor detectors. The anti-masking function, which in on around the clock by default, detects installation of barriers, pasting over, application of paint or transparent coating on one or two lenses. The integrated tamper alarms if the dust- and moisture-proof detector body is opened.

Ready to operate straight out the box

MotionProtect Outdoor comes with pre-installed battery, so you do not need to disassemble it. The detector can be connected to the hub by one click in the mobile application. It can be mounted at a height of 0.8 to 1.3 meters on the SmartBracket in just a few minutes. Although the complete battery life is 5 years, it is possible to connect external power supply.

Tech specs

Classification

Electro-optical radio channel security detector

Type of detector

Wireless

Installation method

Outdoors/indoors

Compatibility

Operates only with Hub and Hub Plus

Sensing element элемент

Two PIR sensors

Alarm signal delivery time

0.15 s

Motion detection distance

Adjustable, up to 3—15 m

Detection angles

Horizontal — 90°

Sensitivity

Adjustable, 3 levels

Recommended installation height

0.8—1.3 m

Pet immunity

Weight — not relevant
Height — up to 80 cm

Power supply

Power supply: 2 x CR123A battery
Power supply voltage: 3 V
Battery life — up to 5 years
Mains supply: DC 12 V±20%

Jeweller radio technology

Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0−868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor

Available

Operating temperature range

-25°С to +60°С

Permissible humidity

Up to 95%

Anti-sabotage

Grade 3 anti-masking
Protection against fraud
Jamming detection
Tamper-resistant

Remote set up and testing

+

Dimensions

184x70x65 mm
