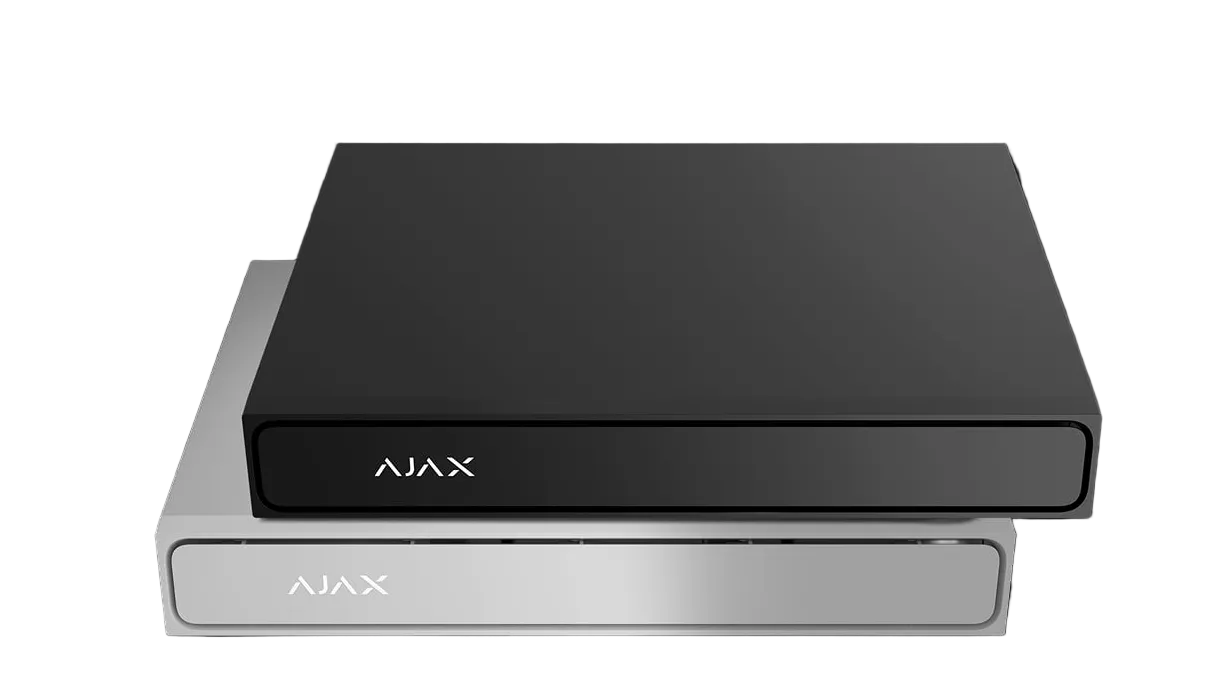

Ajax NVR H2DAC Network Video Recorder 16-channel

Free Shiping

$359.95 USD

Sale Sold out

Shipping calculated at checkout.

Color Black White

Join our Telegram Channel

Visit our eBay Store

Professional 16-Channel Network Video Recorder with Ajax Integration

The Ajax NVR H2DAC is a high-performance 16-channel network video recorder engineered for demanding security installations. With support for resolutions up to 12 MP, native Ajax camera integration, and advanced intelligent video analytics, it delivers a complete, scalable video surveillance solution for commercial and residential environments.

Video Input & Recording

16 video input channels
Recording resolutions: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Live view / playback resolutions: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
HDMI output: up to 3840 × 2160 px (4K), 1920 × 1080, 1280 × 1024, 1280 × 720 px

Decoding Capabilities

Formats: H.265, H.264, JetSparrow
2 × channels at 4096 × 4096 px @ 25 fps
4 × channels at 3840 × 2160 px @ 25 fps
8 × channels at 2880 × 1620 px @ 25 fps
10 × channels at 2560 × 1440 px @ 25 fps
Live view window division: preset templates (1, 4, 9, 16, 25, 5+1, 7+1, 12+1) and custom layouts up to 10×10
Synchronous playback: 4 channels

Intelligent Video Analytics

Motion detection: 16 channels via Ajax camera or NVR built-in algorithms
Seamlessly switch between NVR and camera-based motion analysis directly in the Ajax app
Visual alarm verification: events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall for instant operator response

Storage

2 × SATA III interfaces — supports drives up to 16 TB (2.5" and 3.5" form factors)
Full hot-swap functionality supported
Redundancy mode: simultaneous recording to two storage devices for data reliability
Split mode: sequential distribution across multiple drives to balance load and optimize storage
HDDs/SSDs not included

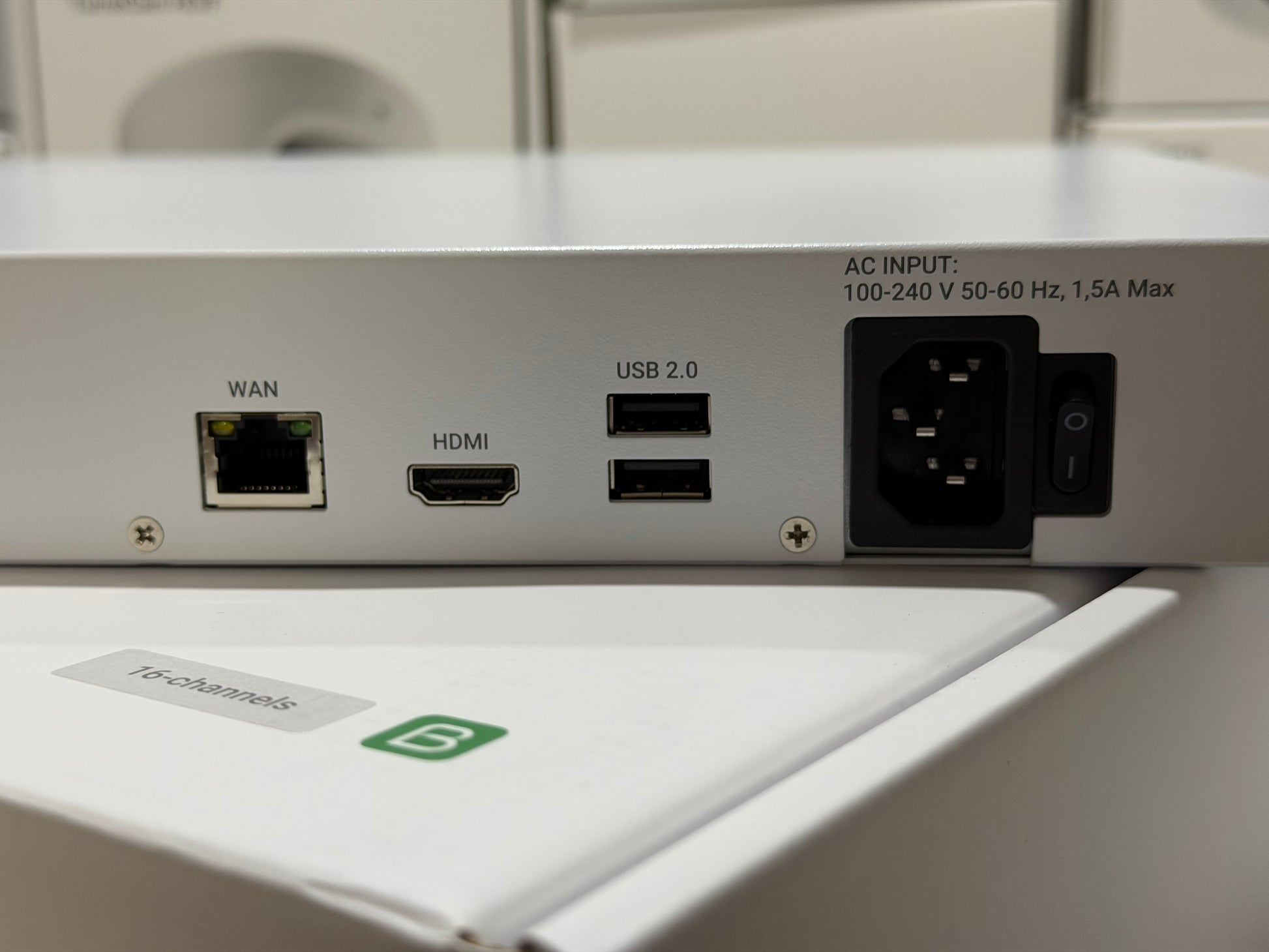

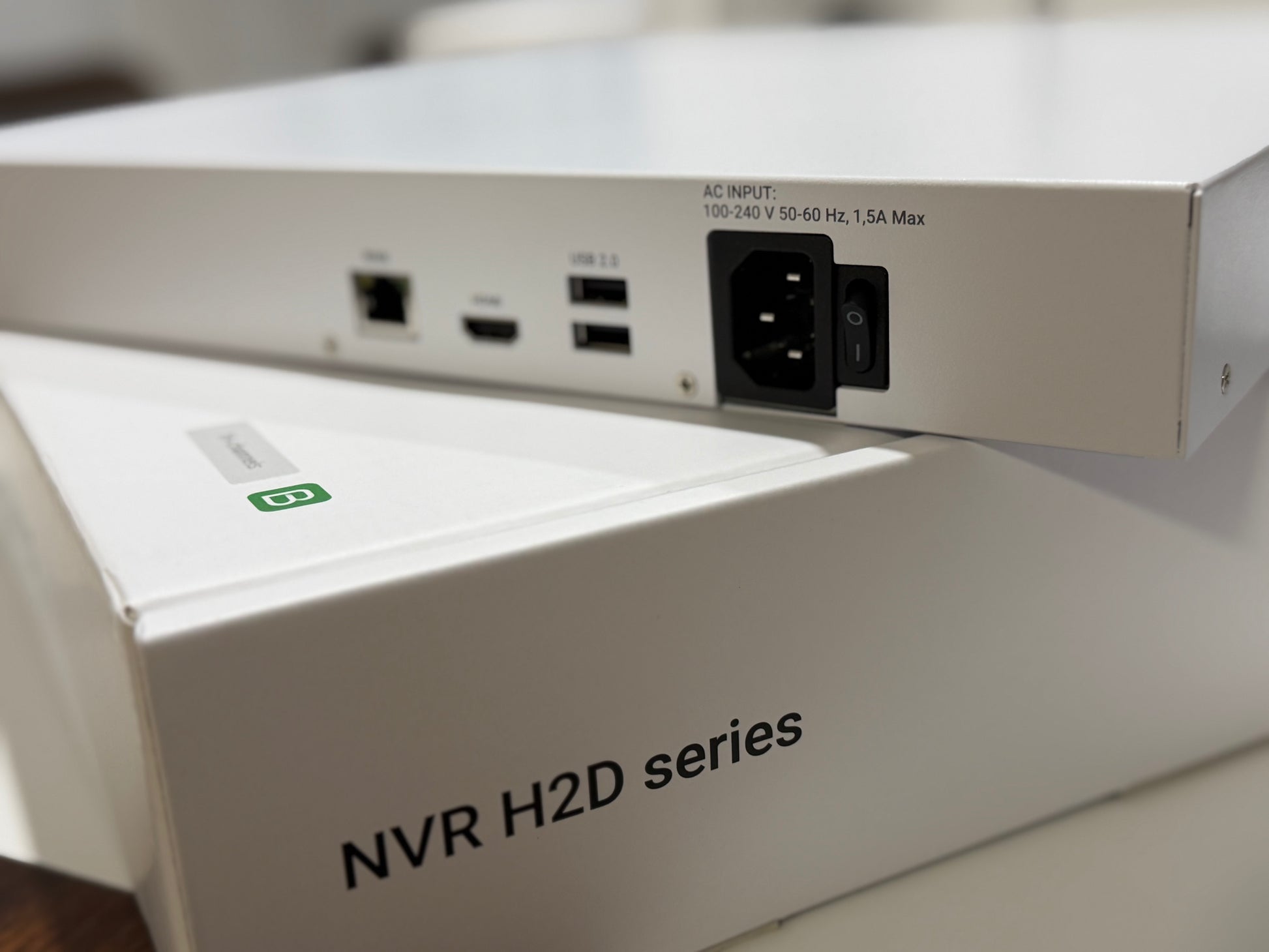

Connectivity & Interfaces

Network: 1 × RJ45 self-adaptive Ethernet (10/100/1000 Mbps)
USB (rear): 2 × USB 2.0 Type-A — for keyboard, mouse, or USB Audio devices
USB (front): 1 × USB 2.0 Type-A — for USB flash drives
Bandwidth: up to 160 Mbps incoming / 160 Mbps outgoing
Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
ONVIF®: conformant with ONVIF® Profile S; supports H.265 (HEVC) encoding, motion detection events, WDR control, and other image settings

Supported Devices

Ajax cameras
IP cameras conformant with ONVIF® Profiles
RTSP-compatible cameras

Built-in Video Management System

Integrated video wall interface with live camera feeds
Smart event filters for quick access to relevant recordings
Interactive timeline with preview navigation for efficient playback and incident review

Security & Privacy

Advanced privacy controls with fully configurable access rights for mobile app users, installers, and monitoring operators via Ajax PRO Desktop
Built-in accelerometer triggers an alarm if the NVR is moved or tampered with
