AJAX

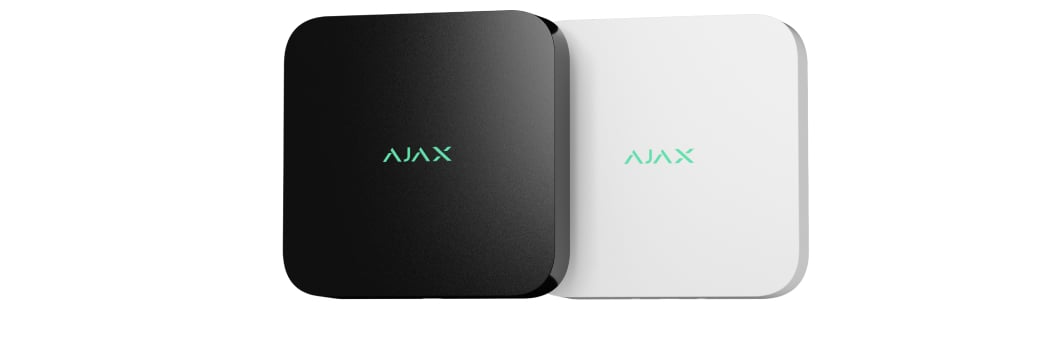

Ajax NVR Network Video Recorder 8-channel

Ajax NVR Network Video Recorder 8-channel

Free Shiping

Regular price $199.95 USD
Regular price $239.95 USD Sale price $199.95 USD
Sale Sold out
Shipping calculated at checkout.
Color
Integrate third-party cameras into your Ajax system without too much hassle. NVR provides full synchronization of the camera with security devices. Easy navigation: all events are displayed in the log and linked to timestamps in the video archive. Set up a script, and the cameras will automatically start recording on the sensor alarm. Simultaneous support for 8 or 16 video stream channels with up to 4K resolution. Supports storage up to 16 TB. NVR has a software motion detector that continuously analyzes the image. The detection zone is configured in Ajax applications. You can switch between the built-in NVR motion recognizer and the standard recognizer.


Compatibility

  • Hub
  • Hub Plus
  • Hub 2 (2G)
  • Hub 2 (4G)
  • Hub 2 Plus
  • Hub Hybrid (2G)
  • Hub Hybrid (4G)

Videostream

NVR models

8-channel
With up to 4K resolution (25/30 FPS).

IP cameras

  • ONVIF (Profile S/T)
  • RTSP

Storage

hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)
HDD not included.

Decoding formats

H.265
H.264

Bandwidth

up to 100 Mbps

Recommendations

The device operating voltage is 110–240 V~.
NVR is designed for indoor installation only.

Communication channels

Ethernet

up to 100 Mbps

Bluetooth

BLE frequency band: 2.400–2.4835 GHz
To set up an Ethernet connection.

Radio signal power

2.5 mW (100 mW limit)

Motion detection

NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.

In-app video management system

  • Videowall that combines images from all connected cameras.
  • Event filters.
  • Timeline with smooth preview.

Visual verification of Ajax alarms

NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.

Privacy

Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
Power supply

Main

110–240 V~, 50/60 Hz, 0.6 A
Up to 24 W of mains power consumption.

Backup

CR2032 battery, 3 V
Only to power the system clock.

Sabotage protection

Tamper alarm

Notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Enclosure

Dimensions

251 × 251 × 51 mm

Weight

700 g
Without a hard drive.

Operating temperature range

from 0°C to +40°C

Operating humidity

up to 75%

Protection class - IP20


Complete set

NVR

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

Quick start guide
