AJAX

Ajax Relay+ DIN Holder 7-24 V

Ajax Relay+ DIN Holder 7-24 V

Free Shiping

Regular price $58.95 USD
Regular price $69.95 USD Sale price $58.95 USD
Sale Sold out
Shipping calculated at checkout.

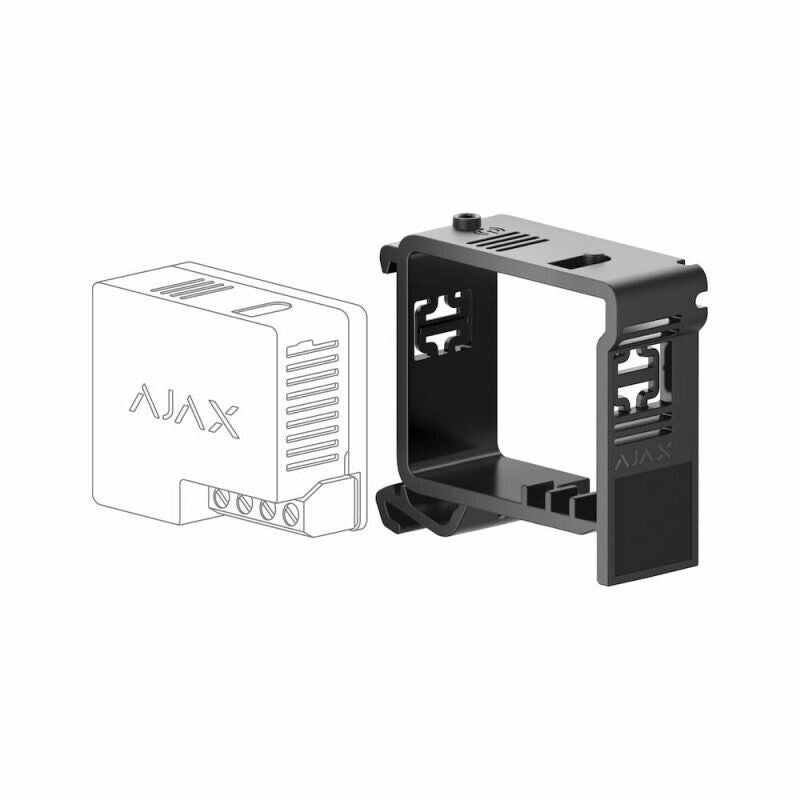

Ajax Relay+ DIN Holder

Radio channel controller for remote control of low current equipment. It is used to activate electric locks, gates and swing gates, rolling shutters and blinds, and to restart modems and routers.

Authentication to prevent forgery
Jamming detection and communication channels encryption
Protected from power surges and overheating

Principle of operation

The device controls electric power supply by means of relay, which closes and opens the dry contact.

Features

Operates from 7—24 B DC voltage sources. The dry contact is not galvanically connected to the device itself.

Installation and set up

The device is installed in junction boxes, distribution boards, and enclosures of switching units.

Tech specs

Classification

Radio channel relay unit

Device type

Wireless

Installation method

Into electric switchboard, junction box

Compatibility

Operates only with Hub and Hub Plus

Actuating element

Electromagnetic relay

Relay service life

200,000 switch-ons

Voltage protection

Max — 36.5 V, min — 6.5 V

Maximum load current

5A at 36V DC, 13A at 230V AC

Maximum current protection

No

Maximum temperature protection

65°C at the place of installation

Electric power meter function

No

Energy consumption parameter check

Voltage

Alarm signal delivery time

0.15 s

Power supply

7—24 V (DC only)
