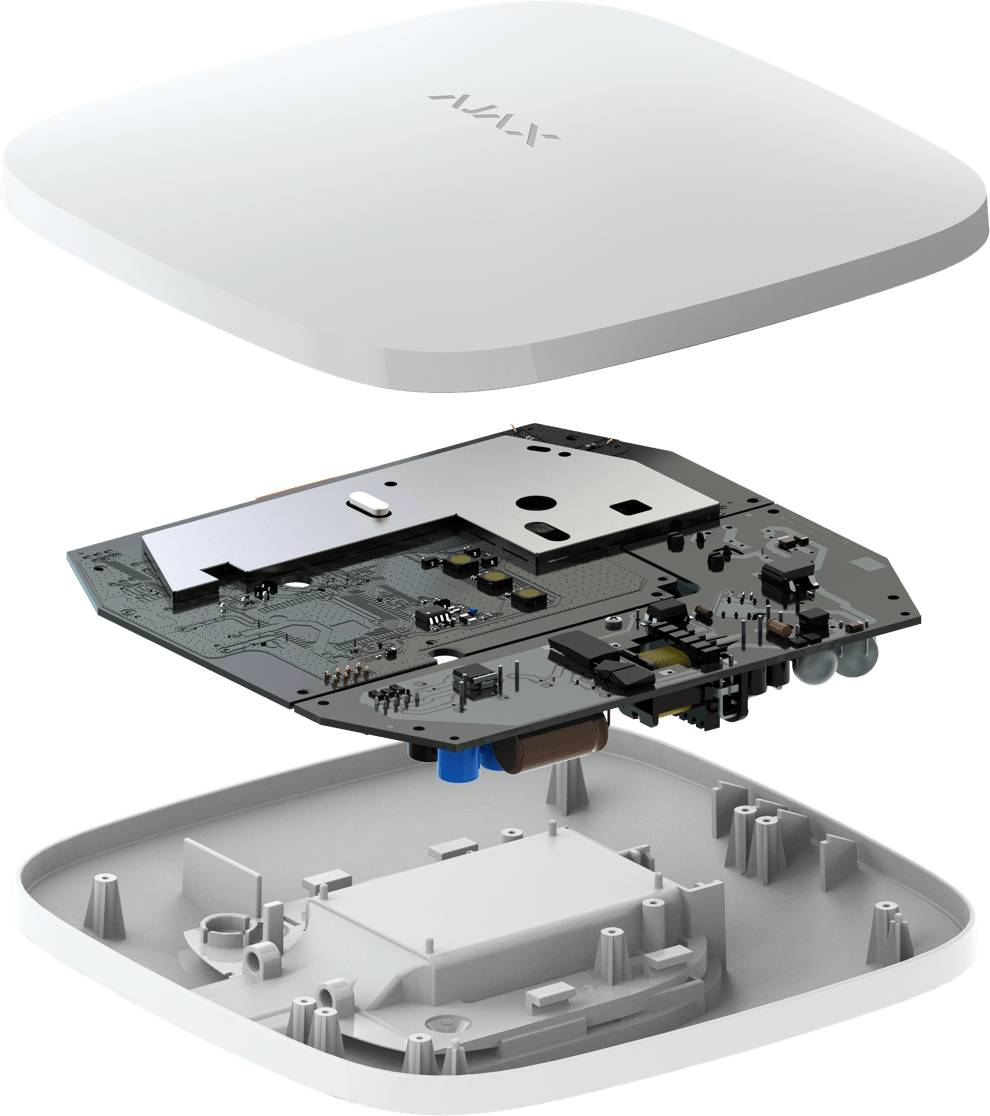

ReX is a range extender of communication signals that expands the radio communication range of Ajax devices fitted with a Hub up to 2-fold. It has a built-in tamper resistance and is equipped with a battery that provides up to 35 hours of operation without external power.
The device is configured via the mobile application for iOS and Android smartphones. Push-notifications, SMS messages and calls (if enabled) notify ReX user about all events.
The Ajax security system can be used for independent monitoring of the site and can be connected to the Central Monitoring Station of the security company.
Functions
- The Jeweller communication protocol allows Ajax ReX to safely oversee the connected peripherals at a distance of up to 1,700 meters in an open field
- The system works even with poor-quality wireless connections: the function is based on communication at only 0.5 kbit / s.
- Two-way communication technology enhances periodic control of peripherals and easy parameterization.
- Easy installation with the SmartBraket base and connection to peripherals through the application
- Protection against interference, detachment and power failure
- 35 hours standby battery
Classification
Radio channel range extender
Compatibility
Operates only with Hub and Hub Plus featuring OS Malevich 2.7.1 and later
Alarm signal delivery time
Maximum connected devices
Hub — up to 99
Hub Plus — up to 149
Power supply
Mains supply: 110−240 V
Battery backup: Li-Ion 2 А⋅h
Up to 35 hours of offline operation
Jeweller radio technology
Communication range with detectors — up to 1,800 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Operating temperature range
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Complete set
Intelligent radio signal range extender ReX
Power cable
Installation kit
