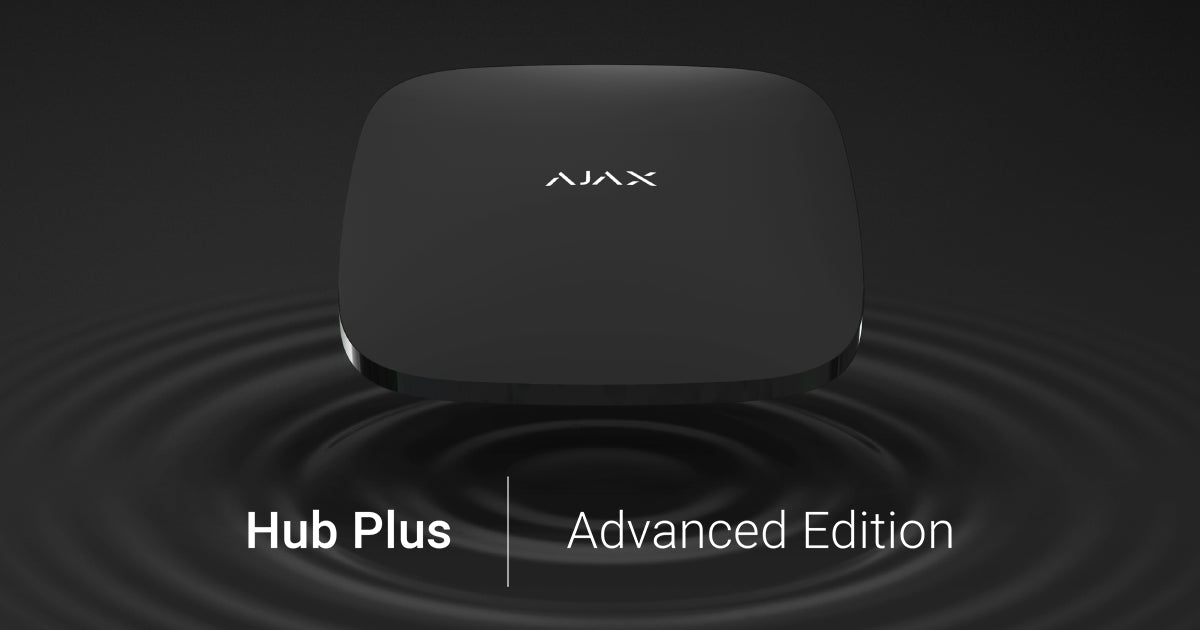

Hub Plus
Second-generation intelligent control panel with four communication channels, a new powerful processor, tripled RAM capacity and doubled flash memory capacity. The Hub Plus monitors the operation of all Ajax detectors and instantly alerts the owner and the security company.
Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner
Sends a notification in case of electrical power loss and operates for up to 16 hours from battery backup.
Hub Plus Technical Specifications
| External power |
110—240 V AC |
| Backup battery |
Li-Ion 2 A⋅h, up to 16 hours of battery life (when Ethernet and Wi-Fi connections are disabled) |
| Tamper protection |
Available |
| Frequency range |
868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the region of sale |
| Communication range |
Up to 2000 m (in the absence of obstacles) |
| Communication channels |
Wi-Fi 2.4 GHz (802.11 b/g/n), Ethernet, 2 Micro SIM slots, 2G networks (GSM900/DCS1800), 3G networks (WCDMA 900/2100, B8/B1) |
| Operating temperatures |
From -10°C to +40°С |
| Operating humidity |
Up to 75% |
| Size |
162.7 х 162.7 х 35.9 mm |
| Weight |
350 g |
