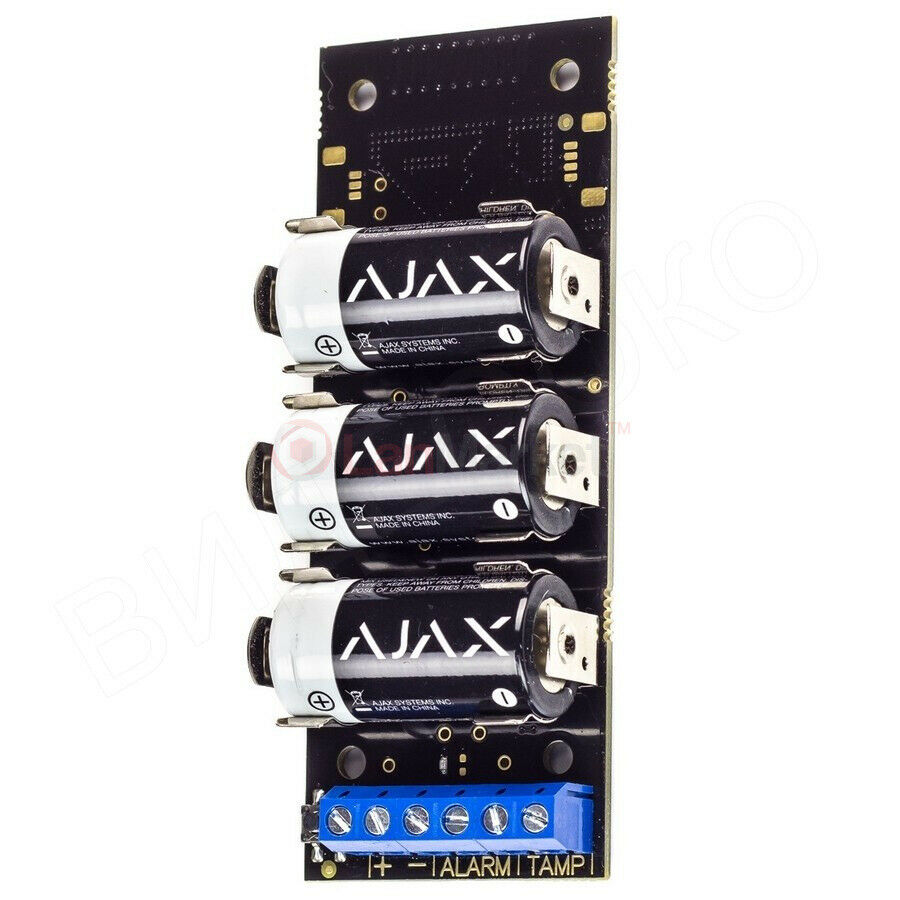

AJAX Transmitter Wireless Module Connection

AJAX Transmitter Wireless Module Connection

Free Shiping

$49.95 USD
$79.95 USD $49.95 USD
Sale Sold out
Shipping calculated at checkout.
Join our Telegram Channel Visit our eBay Store
Wireless module for connection of outdoor motion detectors, IR barriers, level detectors and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.
  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Two-way communication with detectors
  • Converts third-party detectors to the Ajax full-featured devices
  • It can be used as a power supply for third-party devices
  • Operates at a temperature of +50°С to -25°С and humidity up to 75%

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.


Features

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.


Installation and set up

It is installed in the enclosure of outdoor detectors or a mounting box.

Classification
Module for third-party detector integration
Device type
Wireless
Installation method
Indoors/outdoors
Compatibility
Operates only with Hub, Hub Plus, Hub 2 and ReX
Alarm input
1
Tamper input
1
Power supply current
Terminals +/−
Power supply output
3.3 V
Battery charge indication
Yes
Alarm signal delivery time
0.15 s
Power supply
Battery: Four CR123A batteries, 3 V
Battery life
Up to 5 years
Jeweller radio technology





Communication range with central unit — up to 1,600 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s
Temperature sensor
Available
Operating temperature range
From -25°С to +50°С
Permissible humidity
Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Accelerometer to detect removal
Remote setting and testing
+
Dimensions
100 × 39 × 22 mm
Weight
74 g
Complete set




Transmitter
Three CR123A batteries (pre-installed)
Installation set
User's guide
