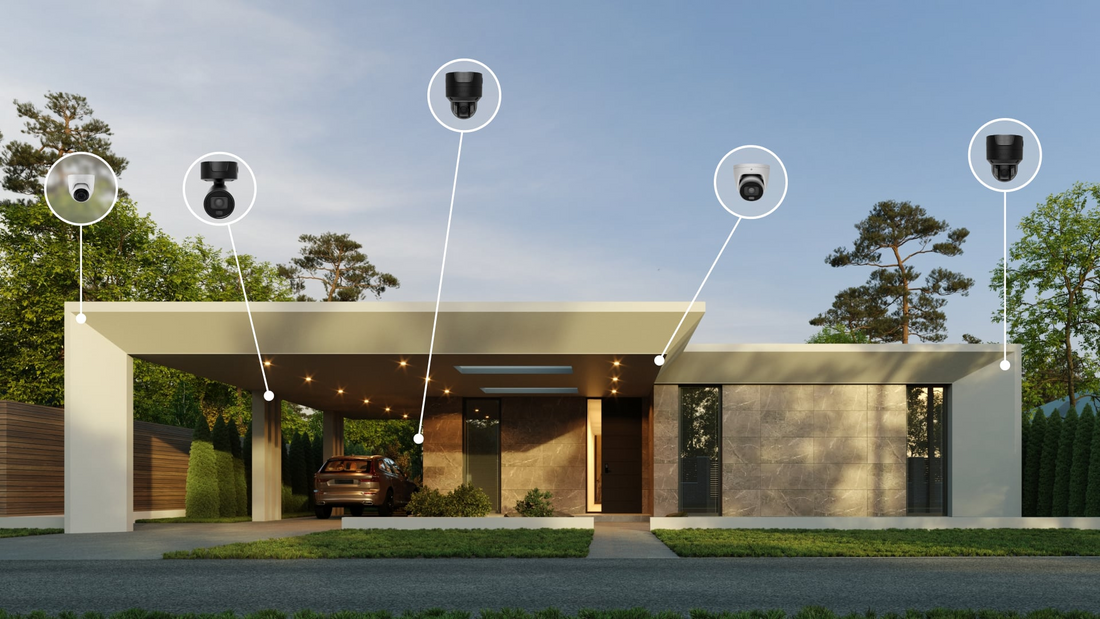

Where to Place Security Cameras for Maximum Protection

Where to Place Security Cameras for Maximum Protection

Where to Place Security Cameras for Maximum Protection

Installing a security camera system is only half the job. The other half — arguably the more important half — is knowing where to put those cameras. Poor placement creates blind spots that intruders can exploit, while smart placement deters crime before it happens and captures clear evidence if it does.

This guide walks you through the most effective camera positions for homes, apartments, and small businesses, with practical tips you can apply right away.

Start With a Threat Assessment

Before mounting a single camera, walk around your property and ask yourself:

  • Where are the most likely entry points for an intruder?
  • Which areas have poor natural lighting at night?
  • Where do you store high-value items or keep sensitive areas?
  • Are there spots that are hidden from the street or neighbors?

Your answers will shape your entire camera layout. The goal is to cover every realistic access route while prioritizing the areas of highest risk.

Outdoor Camera Placement

1. Front Door

Statistics consistently show that the majority of break-ins happen through the front door. A camera positioned above the entrance — angled slightly downward at face level — captures clear footage of anyone approaching. The Ajax DoorBell is a purpose-built solution here: it combines a wide-angle camera with two-way audio so you can see and speak to visitors remotely. For a fixed camera above the door, the Ajax TurretCam 8MP delivers sharp 4K-class detail with True WDR — essential for handling the contrast between a bright exterior and a shaded doorstep.

2. Back Door and Side Entrances

Secondary entrances are often less visible from the street, making them attractive to intruders. The Ajax BulletCam 8MP is well suited here: its long-range IR illumination covers dark passageways and side alleys effectively, and its weatherproof housing handles rain and temperature extremes. For tighter spaces, the Ajax BulletCam 5MP offers the same form factor at a lower resolution — a cost-effective choice when the area is smaller.

3. Driveway and Garage

A camera covering the driveway serves double duty: it monitors vehicle access and captures anyone approaching the property on foot. The Ajax BulletCam HL 8MP/5MP is an excellent choice — its AI-powered detection distinguishes people from vehicles, reducing false alerts from passing cars or animals. Position it to cover the full width of the driveway and, if possible, the street in front of your home.

4. Garden, Yard, and Perimeter

Large outdoor areas benefit from wide-angle cameras placed at the corners of the building. The Ajax TurretCam HL 8MP/5MP combines a wide field of view with AI motion analysis, making it ideal for open spaces where you need to distinguish genuine threats from wildlife or blowing foliage. Avoid pointing cameras directly at bright light sources — True WDR technology in Ajax cameras helps, but direct sun will still degrade image quality.

5. Gates and Fences

If your property has a perimeter fence or gate, place a camera to monitor the entry point. The Ajax MountCam A1 is a compact mounting solution designed for flexible positioning on poles, walls, and fences — useful when a standard wall mount isn’t practical at a gate post.

Indoor Camera Placement

6. Main Hallway or Entryway

Anyone who enters your home will almost certainly pass through a hallway. The Ajax IndoorCam is purpose-built for this role: it’s a compact wireless indoor camera that integrates directly with the Ajax security hub, triggering recording when linked detectors are activated. Place it high in a corner for the widest coverage of the entry zone.

7. Living Room

The living room often contains high-value electronics and is a common target. The Ajax DomeCam Mini 8MP is an unobtrusive choice — its low-profile dome design blends into ceilings and delivers a wide 100–110° field of view that covers most living room layouts from a single corner mount. The 5MP version is available in white for a cleaner aesthetic in bright interiors.

8. Staircase

In multi-story homes, the staircase is a natural chokepoint. A single Ajax DomeCam Mini HL 8MP/5MP positioned at the top or bottom of the stairs monitors movement between floors effectively. Its built-in microphone also captures audio — useful for verifying whether an alert is a genuine intrusion or a family member moving around at night.

9. Home Office or Safe Room

If you work from home or store important documents and valuables in a specific room, that space deserves its own camera. The Ajax IndoorCam works well here too — its direct integration with the Ajax app means you can check a live view of your office from anywhere, at any time.

10. Garage Interior

The interior of a garage is often overlooked. Tools, bicycles, and vehicles are common theft targets. A Ajax TurretCam 5MP mounted in the corner of the garage covers the full space and the internal door connecting to the house — a frequent intruder entry point that’s easy to miss.

Recording and Storage: Don’t Forget the NVR

Cameras are only as useful as the footage they store. Ajax wired IP cameras connect to an Ajax NVR (Network Video Recorder), which handles continuous or event-triggered recording locally — no cloud subscription required. Choose the right capacity for your setup:

Common Placement Mistakes to Avoid

  • Mounting too high: Cameras placed above 4 meters often capture the tops of heads rather than faces. Aim for 2.5–3.5 meters for the best balance of coverage and image quality.
  • Pointing into the sun: East-facing cameras will be blinded by morning sun; west-facing ones by evening light. True WDR helps, but direct sun will still degrade image quality.
  • Ignoring cable routing: For PoE cameras, plan your cable runs before drilling. Ajax wired cameras use standard Cat5e/Cat6 Ethernet — keep runs under 100 meters per cable.
  • Forgetting about privacy laws: In most countries, you cannot legally record your neighbors’ property or public spaces without consent. Keep cameras pointed at your own property.
  • Skipping tamper protection: Cameras mounted within easy reach can be redirected or disabled. Always mount out of arm’s reach, or choose models with built-in tamper detection.

Pairing Cameras With Motion Detectors for Smarter Coverage

Cameras are most effective when combined with motion detectors that trigger recording and alerts the moment movement is detected. The Ajax system integrates cameras with the full range of wireless detectors, including:

When a detector triggers, the Ajax hub can instantly activate camera recording and send a push notification with a photo or video clip — so you see exactly what’s happening before deciding whether to call for help.

Getting Started With Ajax Cameras

If you’re building a new Ajax system or adding cameras to an existing setup, the Ajax StarterKit Cam is the easiest way to get started. It includes a hub and a camera pre-configured to work together out of the box.

For larger installations or professional setups, the Ajax Hub 2 Plus supports camera integration alongside up to 200 wireless devices — making it the right choice for offices, retail spaces, and larger homes.

Final Thoughts

The best security camera system is one that covers your real vulnerabilities — not just the obvious spots. Take the time to assess your property, eliminate blind spots, and combine cameras with motion detectors for a layered approach that’s far more effective than cameras alone.

Need help designing a camera layout for your specific property? Get in touch with our team — we’ll help you put together the right Ajax setup for your needs.
